P0753

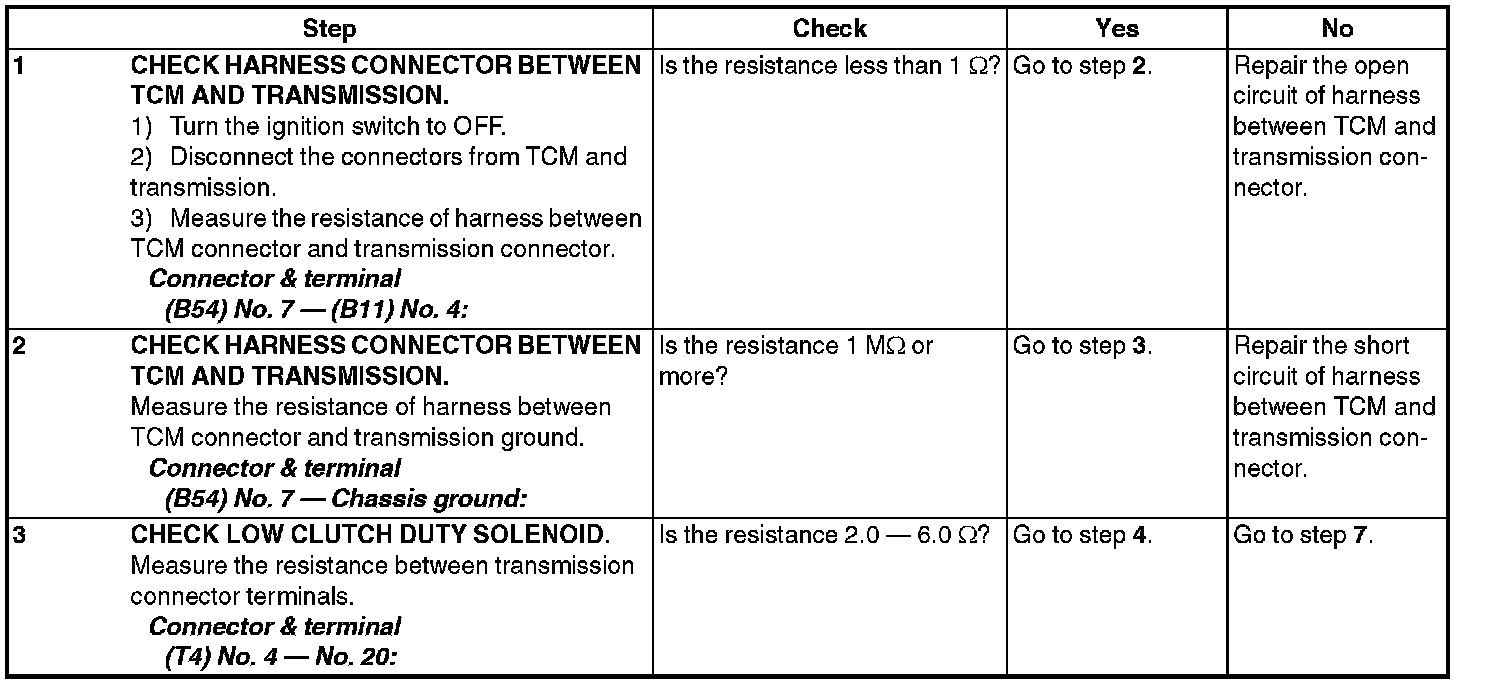

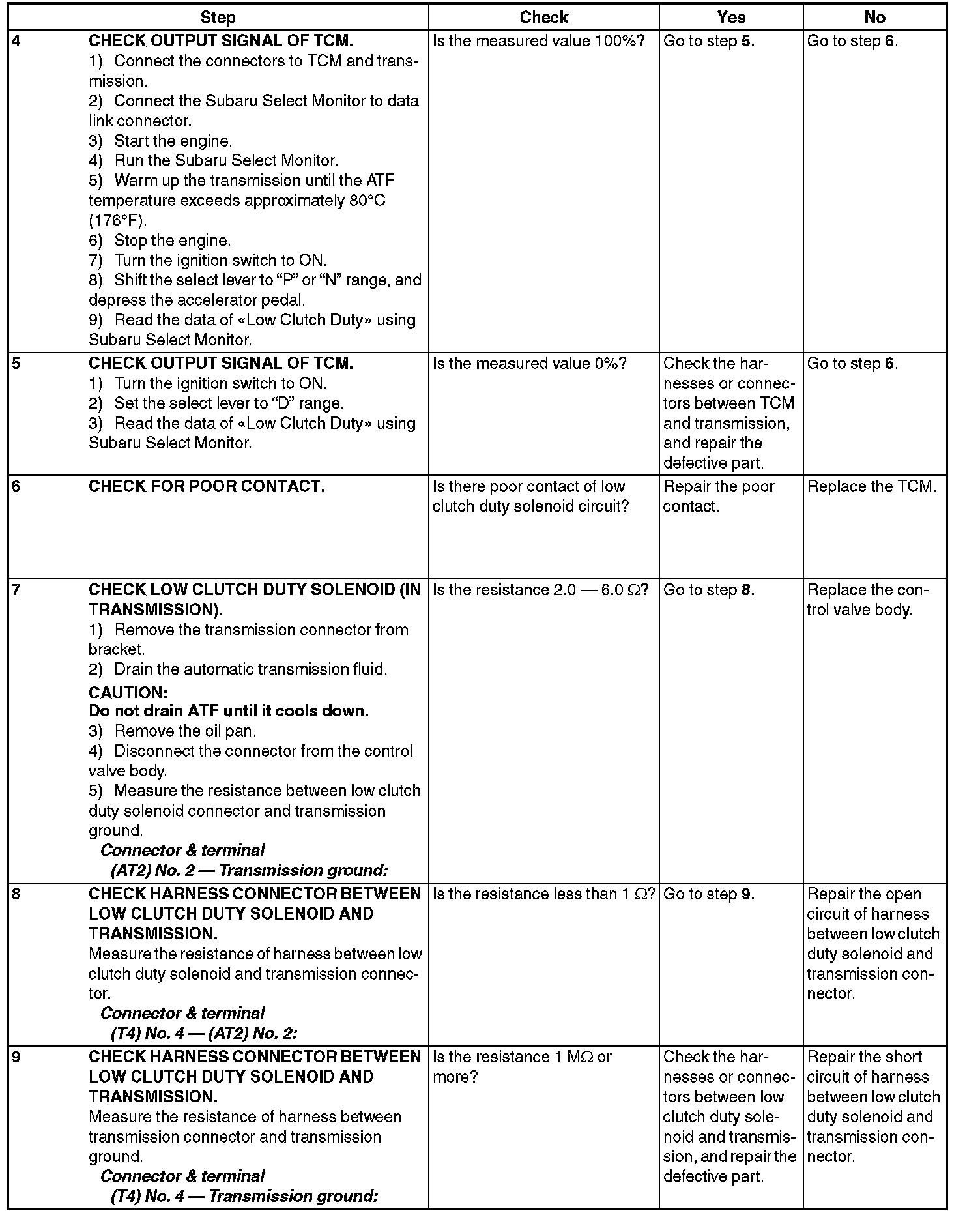

DTC P0753 SHIFT SOLENOID "A" ELECTRICAL

DTC DETECTING CONDITION:
Output signal circuit of low clutch duty solenoid is open or shorted.

TROUBLE SYMPTOM:
Excessive shift shock

WIRING DIAGRAM:
