P0705

DTC P0705 TRANSMISSION RANGE SENSOR CIRCUIT (PRNDL INPUT)

DTC DETECTING CONDITION:
- Inhibitor switch is faulty.
- No range signal is input.
- Multiple range signals are input at a time.

TROUBLE SYMPTOM:
The range position of the select lever and the shift indicator display on the combination meter do not match.

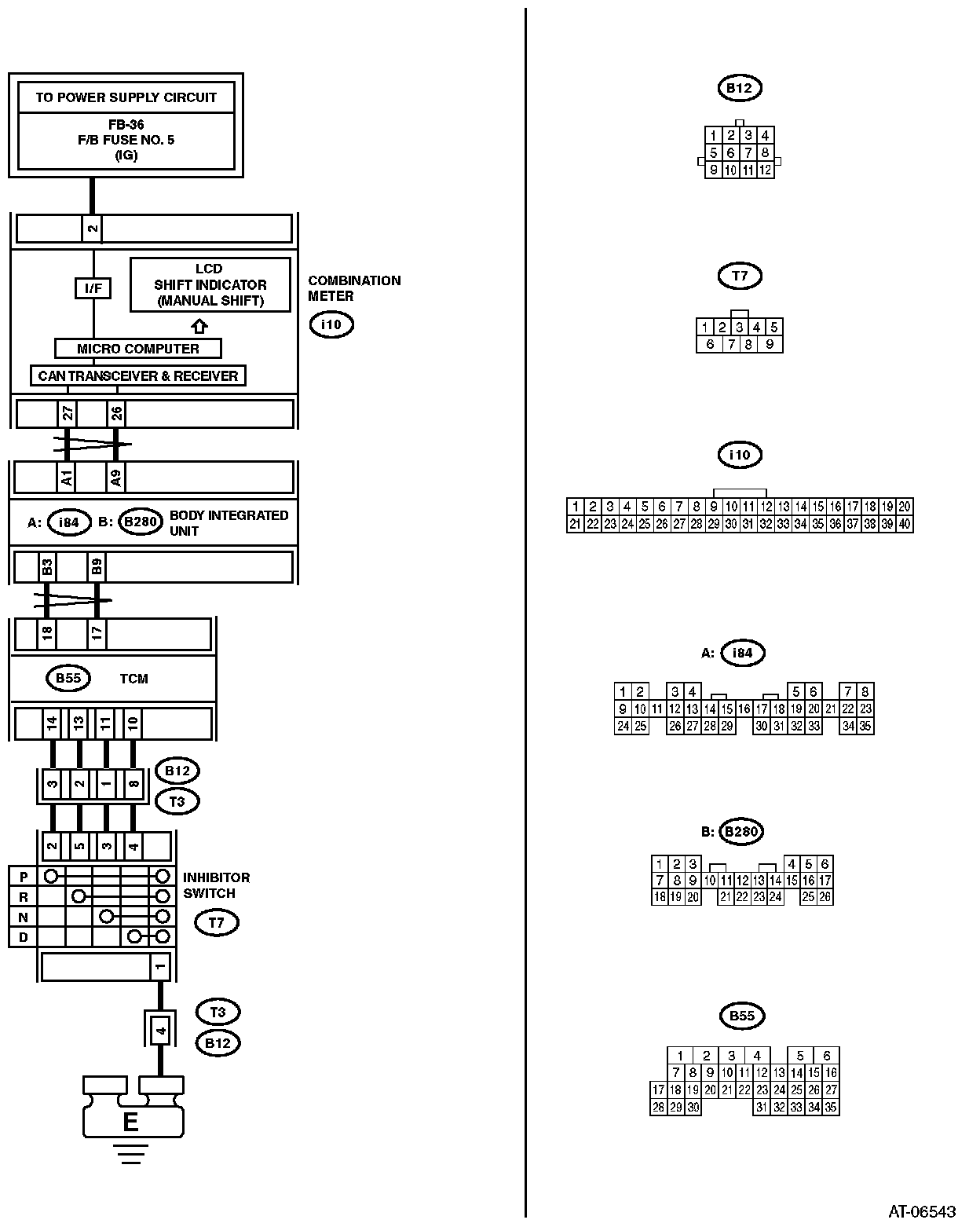

WIRING DIAGRAM:
