Cruise Control

DTC 13

Detected when clutch pedal is depressed or malfunction related to clutch switch occurs.

TROUBLE SYMPTOM:
- Cruise control cannot be set.
- Cruise control cannot be released.

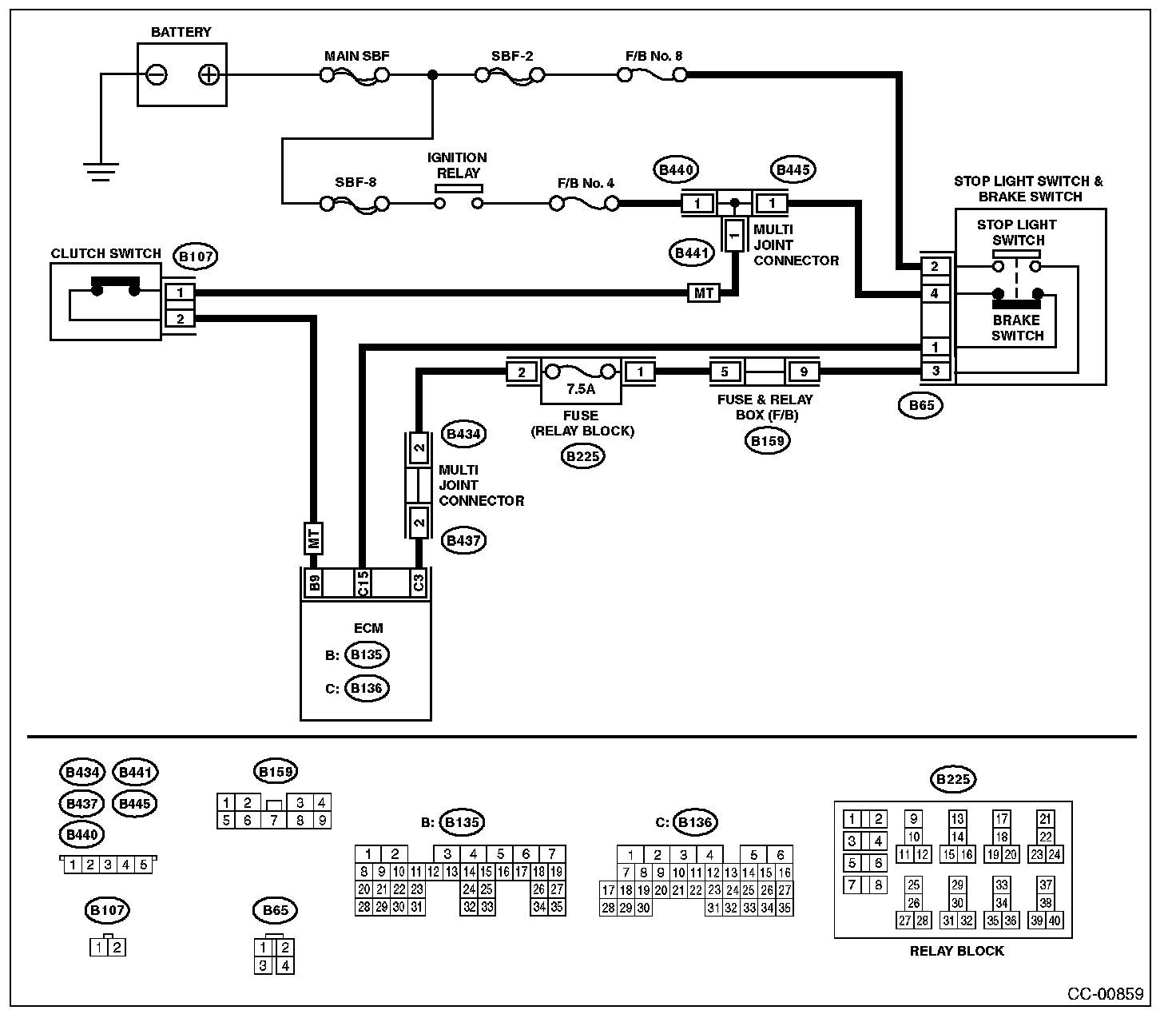

WIRING DIAGRAM:
