B1106
DTC B1106 SHIFT LOCK CIRCUIT FAILUREDTC DETECTING CONDITION:
Shift lock circuit is open or shorted.
TROUBLE SYMPTOM:
Shift lock does not be released or remain locked.
NOTE: P0801 may input simultaneously.

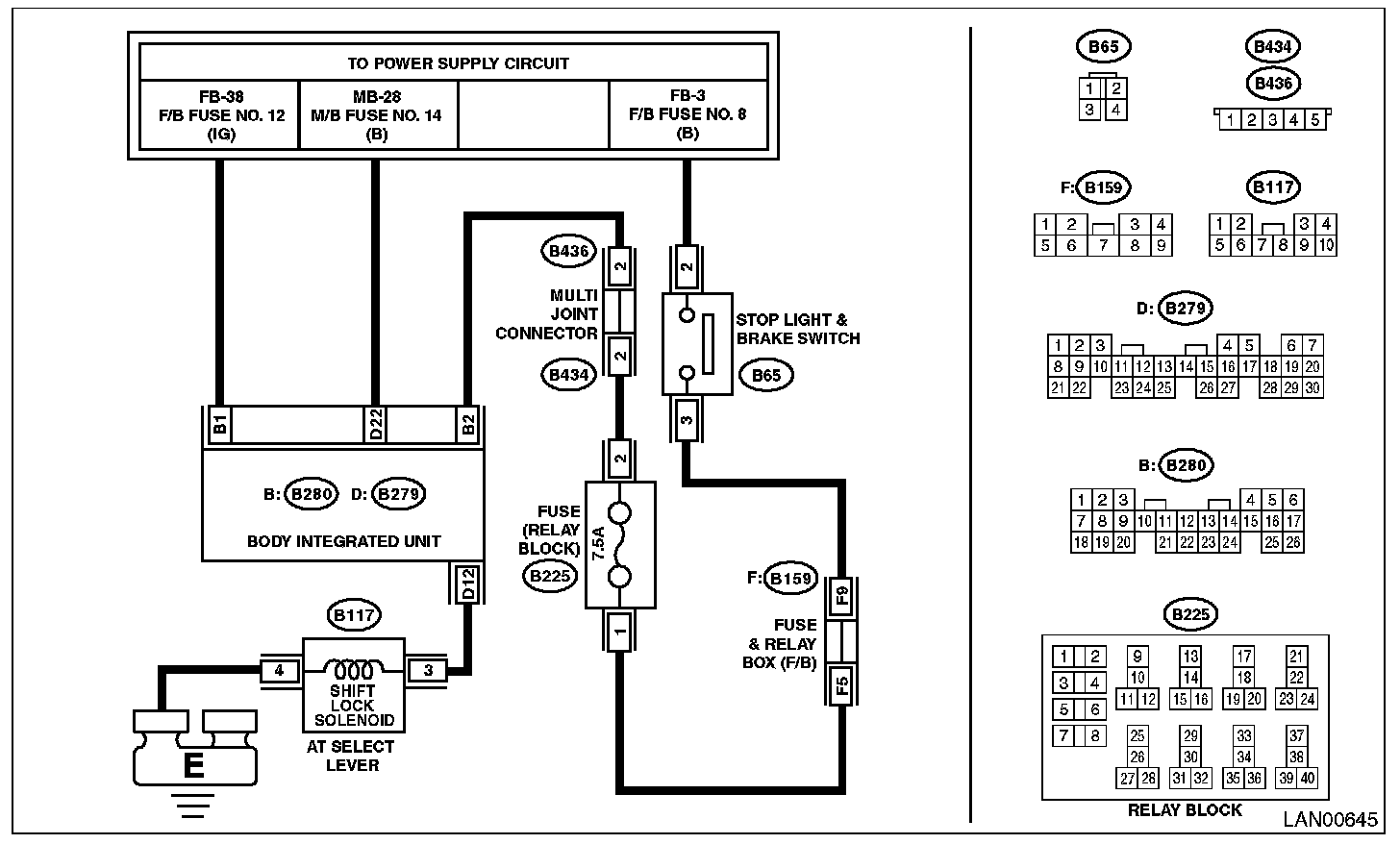

WIRING DIAGRAM:
DTC DETECTING CONDITION:
Shift lock circuit is open or shorted.
TROUBLE SYMPTOM:
Shift lock does not be released or remain locked.
NOTE: P0801 may input simultaneously.
WIRING DIAGRAM:
