Home >> Subaru >> 2011 >> Outback F6-3.6L DOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0719

P0719

DTC P0719 BRAKE SWITCH CIRCUIT LOW

DTC DETECTING CONDITION:
Brake switch malfunction, open input signal circuit

TROUBLE SYMPTOM:
Brake down control does not operate in manual mode.

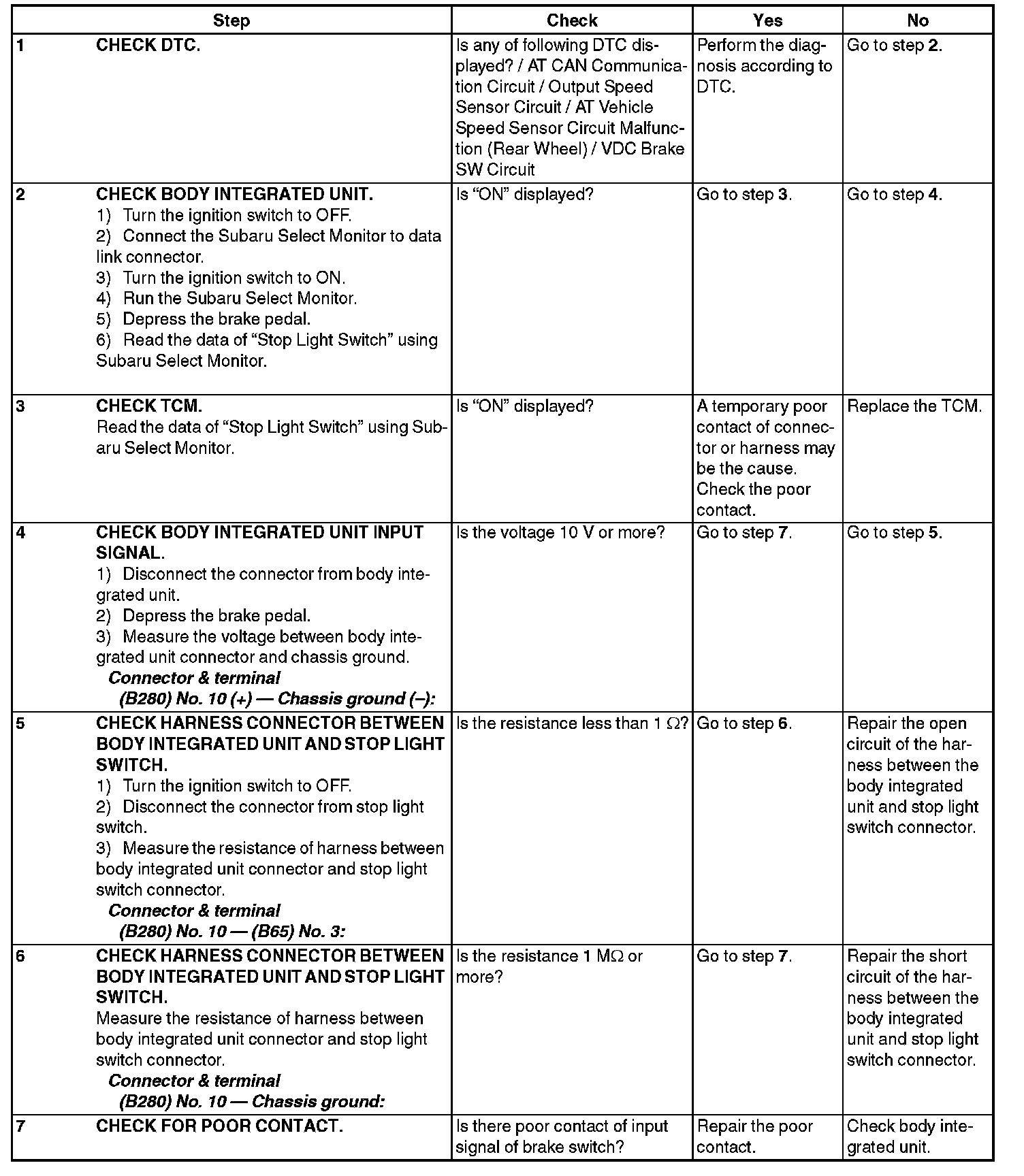

WIRING DIAGRAM:
