Diagnostic Strategies

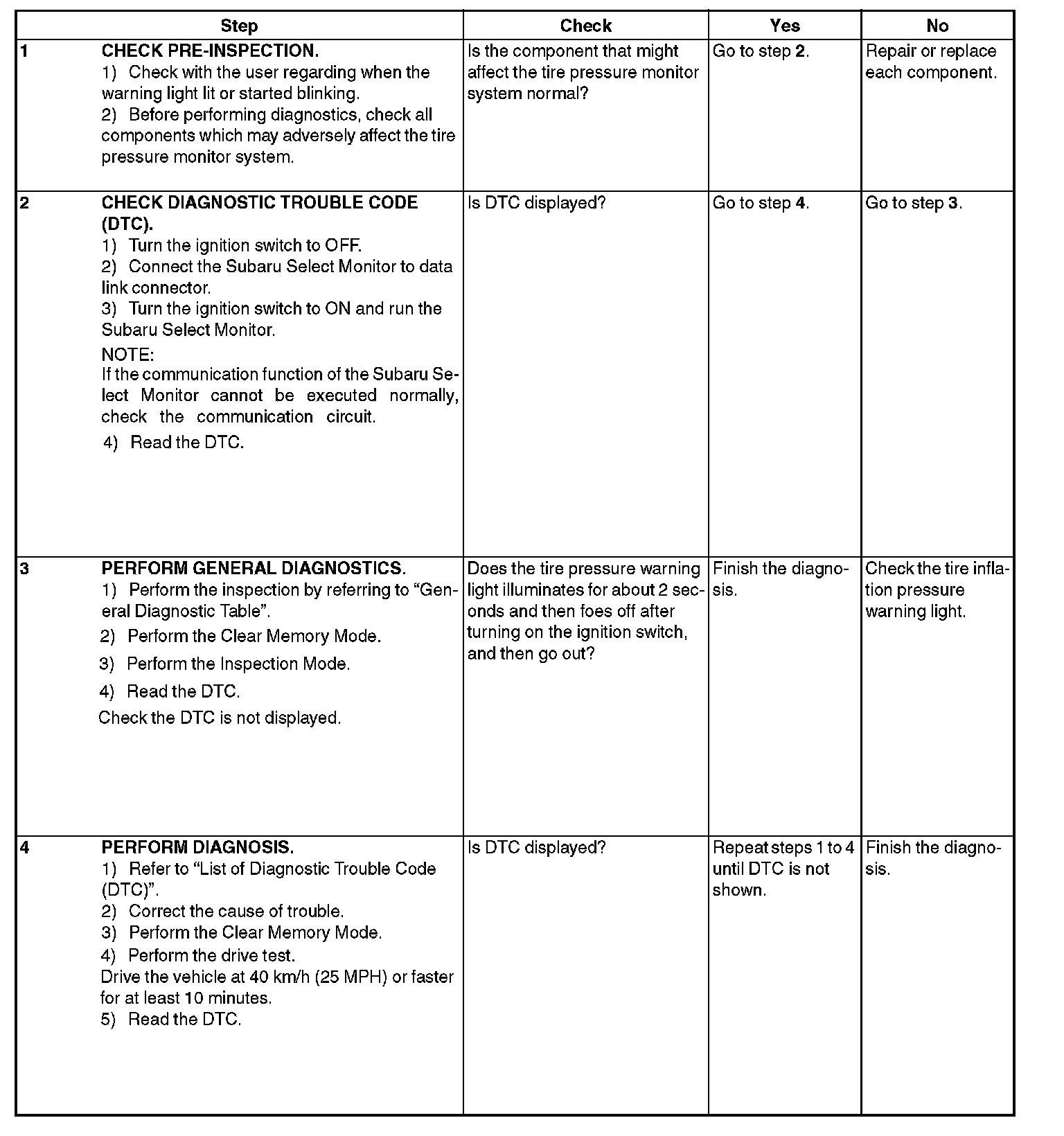

Basic Diagnostic Procedure

PROCEDURE

CAUTION:
Before removal or installation, be sure to remove any foreign matter (dust, moisture, oil, etc.) from the TPMS & keyless entry control module connector.

NOTE:
To check harness for open or short circuits, shake the suspected trouble spot or connector.
