Home >> Subaru >> 2011 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Ambient Temperature Sensor / Switch HVAC >> Locations

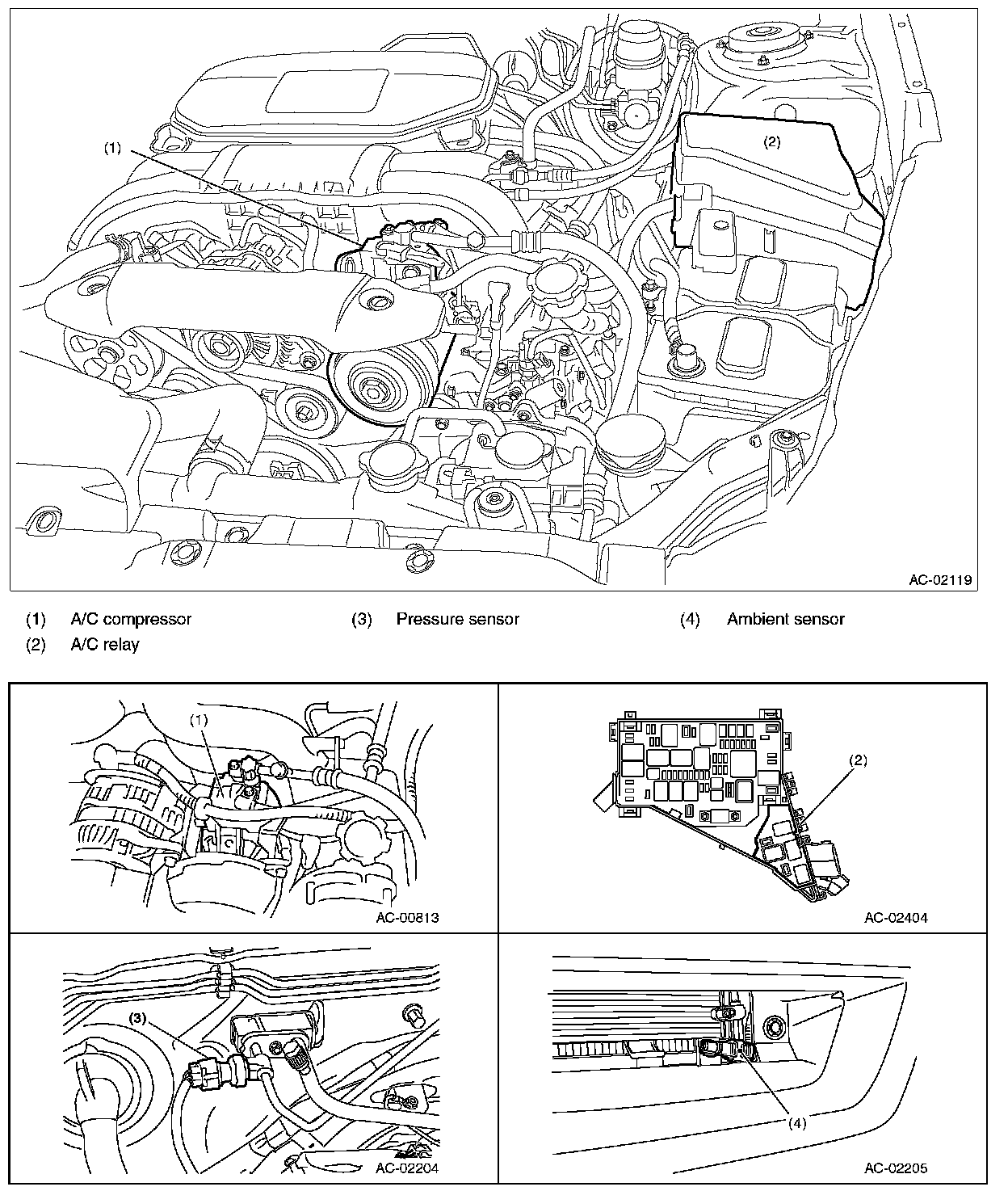

Ambient Temperature Sensor / Switch HVAC: Locations

ELECTRICAL COMPONENT LOCATION

LOCATION

ENGINE COMPARTMENT
