Fuel Gauge

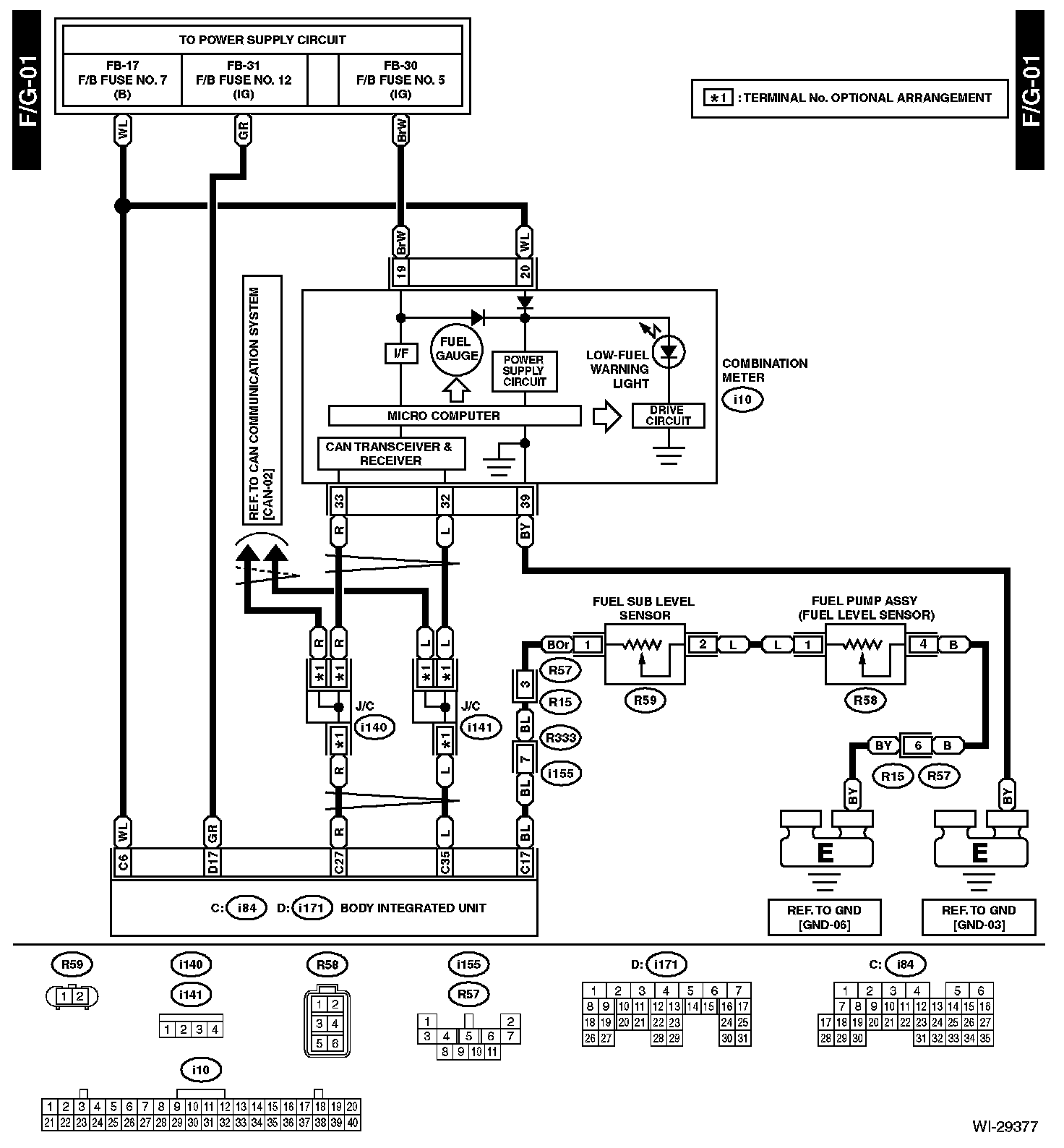

Fuel Gauge System






Connector And Ground Locations: The Locations of the connectors or Grounds Shown within these diagrams can be found via the connector or ground number at Vehicle Locations. Locations
