Home >> Subaru >> 2011 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C0073 >> C0073-Abnormal Lateral G Sensor Output

C0073-Abnormal Lateral G Sensor Output

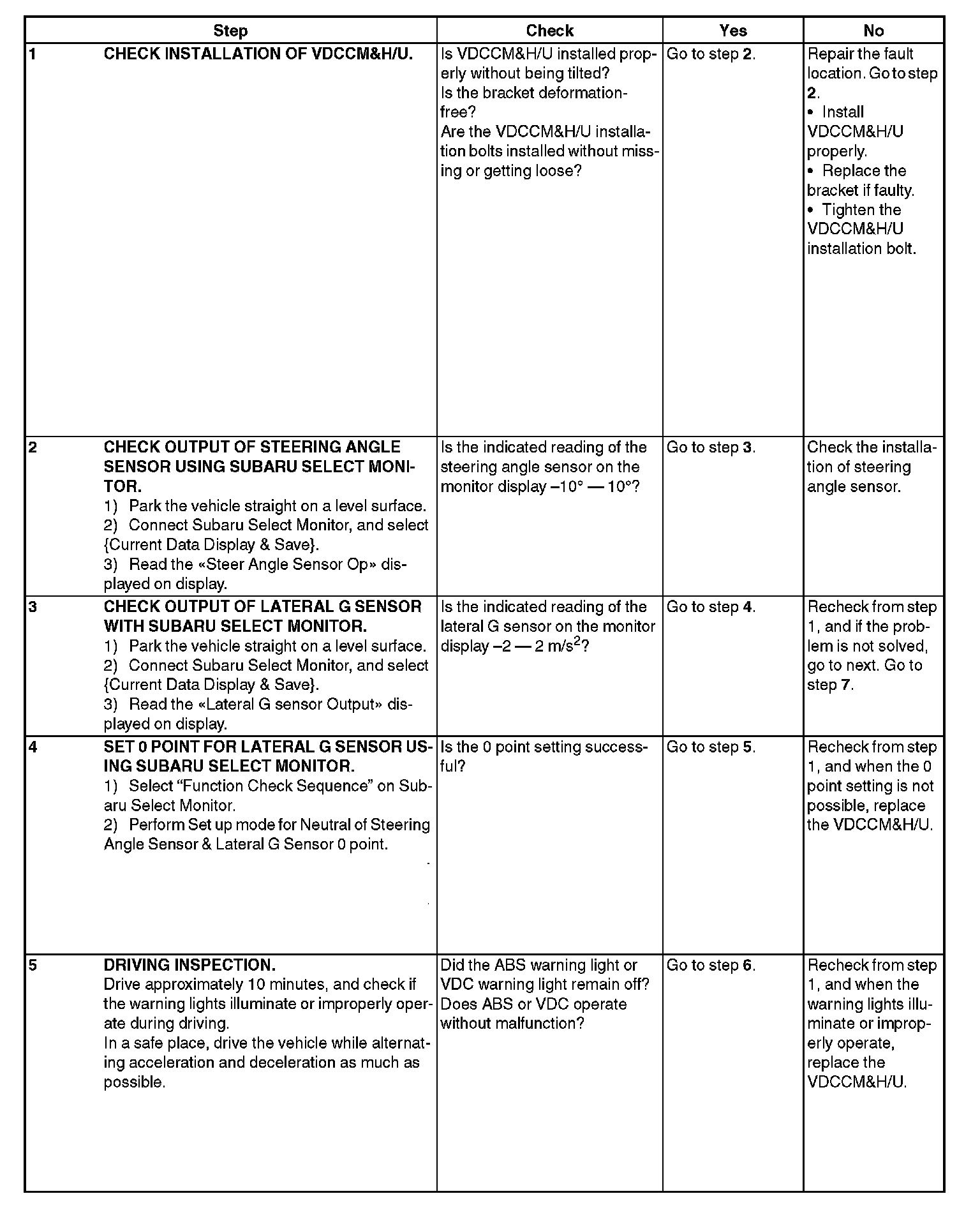

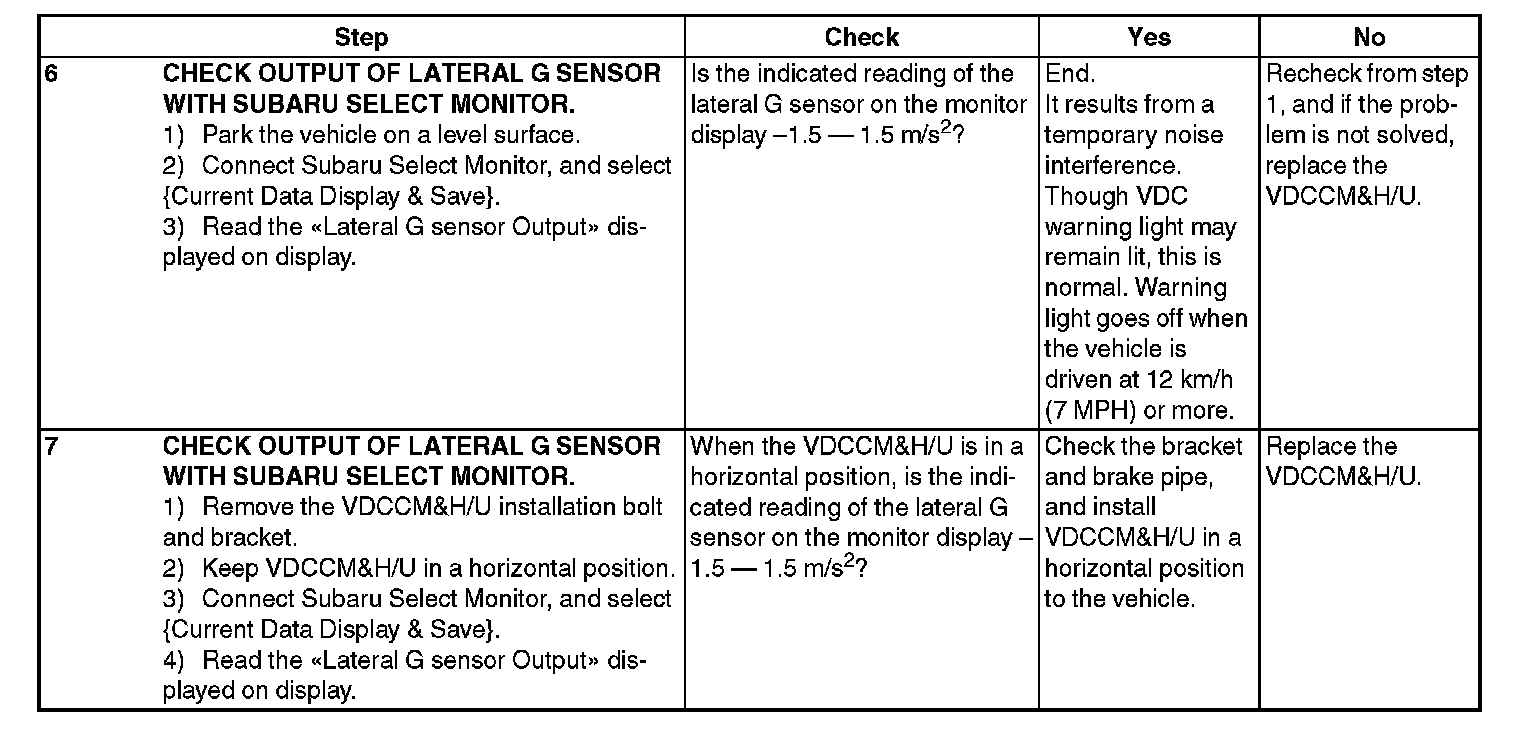

DTC C0073 ABNORMAL LATERAL G SENSOR OUTPUT

DTC DETECTING CONDITION:
Defective lateral G sensor

TROUBLE SYMPTOM:
^ VDC does not operate.
^ Hill start assist does not operate.

WIRING DIAGRAM:
