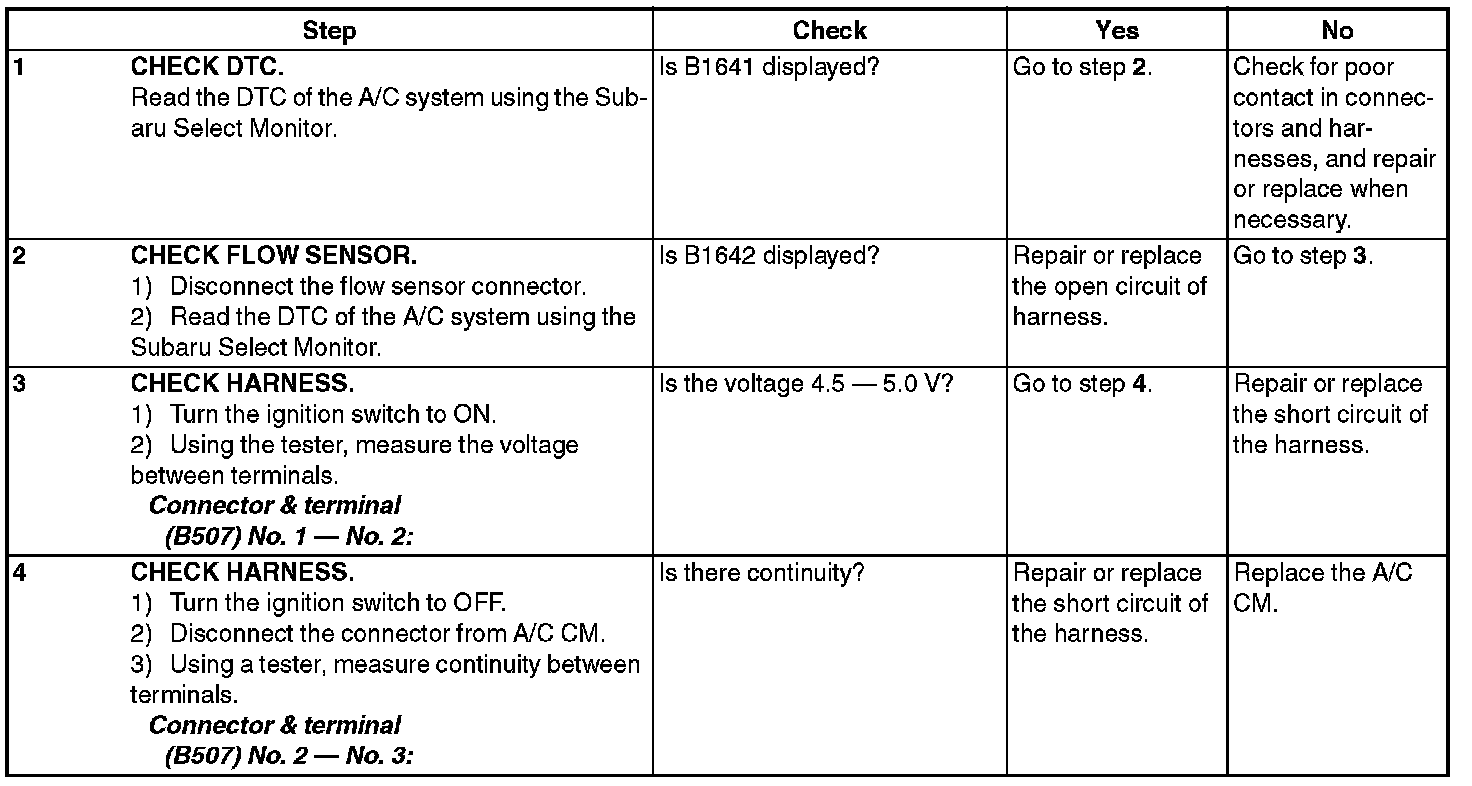

B1641
DTC B1641 REFRIGERANT FLOW SENSOR CIRCUIT SHORTDTC DETECTING CONDITION:
- The voltage of the sensor signal line decreased to 0.3 V or less.
- The circuit is open or shorted.
TROUBLE SYMPTOM:
A/C does not function because refrigerant flow amount cannot be measured.
WIRING DIAGRAM:
