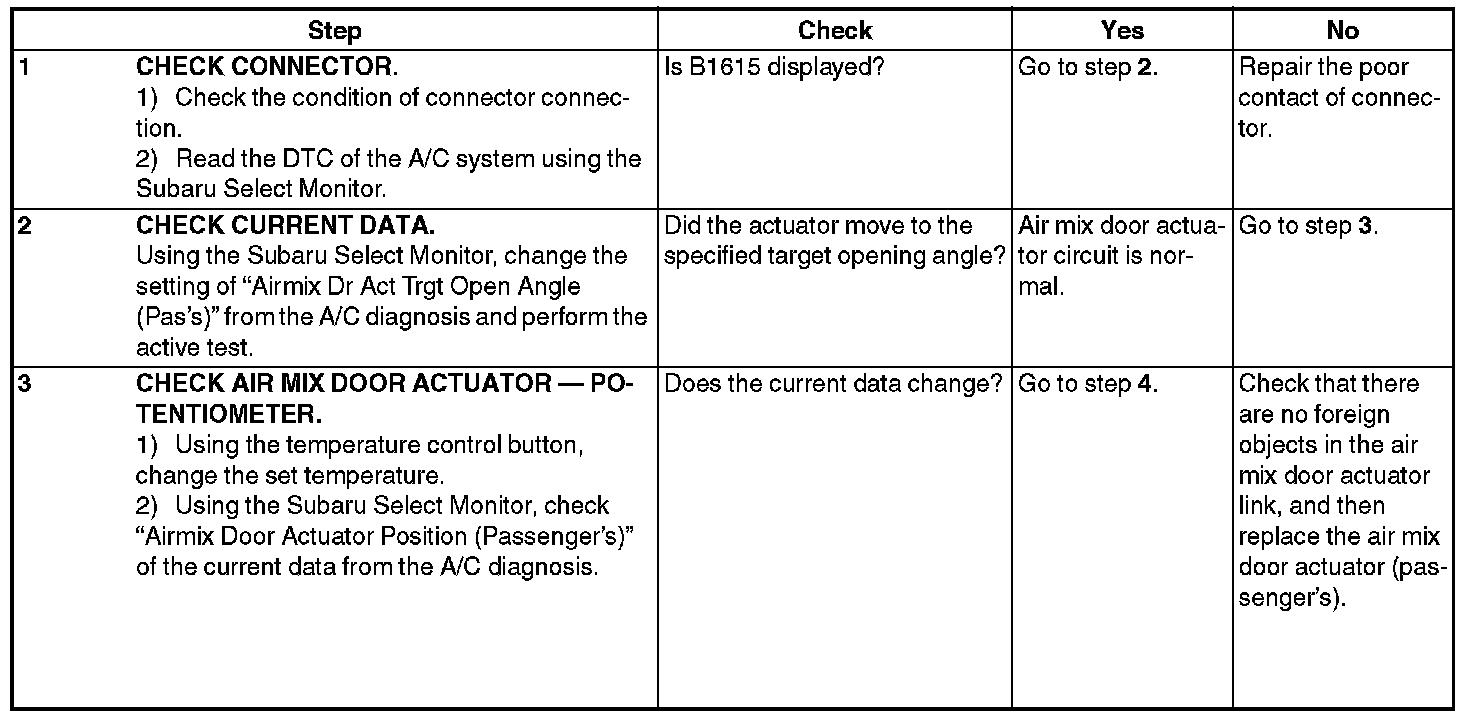

B1615

DTC B1615 AIRMIX DOOR ACTUATOR LOCK (PASSENGER'S)

DTC DETECTING CONDITION:
- Passenger's air mix door actuator is locked.
- The potentiometer value of the actuator does not change.

TROUBLE SYMPTOM:
Temperature of the passenger's dual air conditioner cannot be adjusted.

WIRING DIAGRAM:
