B1601

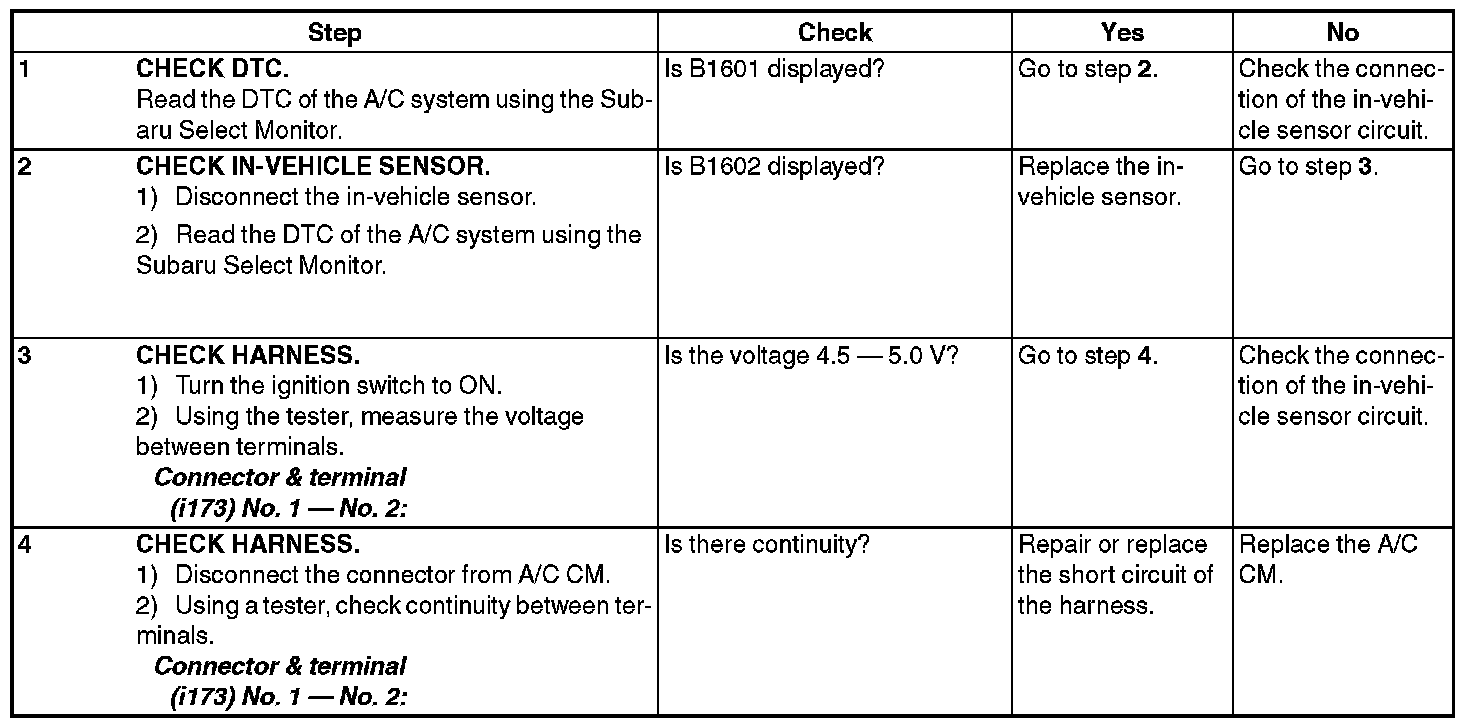

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

DTC B1601 IN-VEHICLE SENSOR SHORT

DTC DETECTING CONDITION:
In-vehicle sensor circuit is shorted.

TROUBLE SYMPTOM:

In-vehicle air temperature is falsely recognized as 25 °C, and the compartment temperature is adjusted.

WIRING DIAGRAM:
