LH Side

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery. Refer to BATTERY .
  2. Disconnect the connector from ignition coil.
  3. Remove the ignition coil.
    NOTE: Turn #4 ignition coil by 180 degrees to remove it.

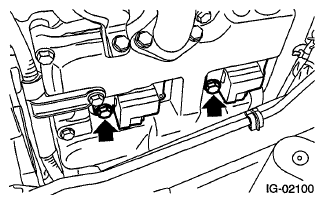

    Fig 1: Locating Ignition Coil Mounting Bolts
    G06649648Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the spark plug with a spark plug socket.
