Water Pump: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
  2. Remove the radiator. Refer to , REMOVAL , Radiator.
  3. Remove the V-belts. Refer to V-BELT .
  4. Remove the crank pulley. Refer to CRANK PULLEY .
  5. Remove the timing belt cover. Refer to TIMING BELT COVER .
  6. Remove the timing belt. Refer to TIMING BELT .
  7. Remove the automatic belt tension adjuster (A).
  8. Remove the belt idler (B).
  9. Remove the belt idler No. 2 (C).
    Fig 1: Identifying Automatic Belt Tension Adjuster And Belt Idler
    G07910956Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the cam sprocket LH. Refer to CAM SPROCKET .
  11. Remove the belt cover No. 2 LH.
    Fig 2: Locating Belt Cover Clamping Bolts
    G06649597Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the tensioner bracket.
    Fig 3: Locating Tensioner Bracket Bolts
    G07909879Courtesy of SUBARU OF AMERICA, INC.
  13. Disconnect the hose from water pump.
  14. Remove the water pump.

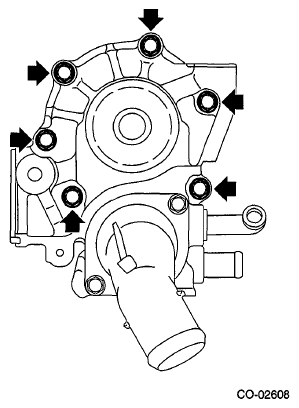

    Fig 4: Locating Water Pump Mounting Bolts
    G06649599Courtesy of SUBARU OF AMERICA, INC.
