Diagnostic procedure

WARNING: This page is about a different variant/trim than selected.

Drive according to the drive pattern described below.

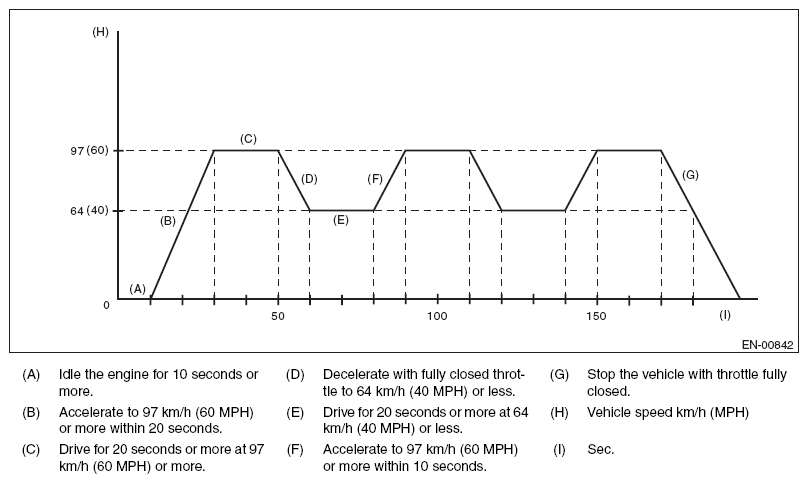

Fig 1: Drive Pattern Diagnostic Procedure Graph
G07910297Courtesy of SUBARU OF AMERICA, INC.
