Section 6 (Engine Mechanical (H4DOTC)): V-belt: Removal: V-Belt

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
  2. Remove the air intake duct. Refer to AIR INTAKE DUCT .
  3. Attach the tool to the V-belt tensioner assembly, and rotate the tool clockwise to loosen and remove the V-belt.

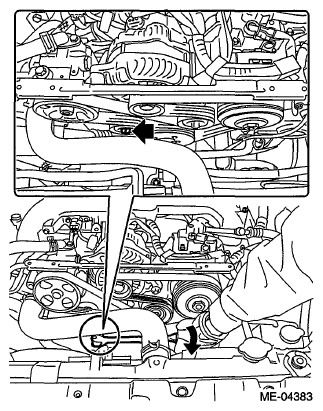

    Fig 1: Locating Bolt Securing V-Belt Tensioner Assembly
    G06650695Courtesy of SUBARU OF AMERICA, INC.
