Automatic Belt Tension Adjuster Assembly And Belt Idler

WARNING: This page is about a different variant/trim than selected.

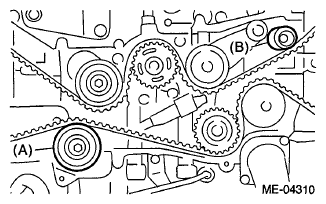

Remove the belt idler (A) and (B).

Fig 1: Locating Belt Idler No. 2 Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the belt idler No. 2.

Fig 2: Locating Automatic Belt Tension Adjuster Assembly Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the automatic belt tension adjuster assembly.

Fig 3: Pushing Adjuster Rod With Pressure Of 165 N
Courtesy of SUBARU OF AMERICA, INC.
