Work On The Vehicle

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

NOTE: Install the vacuum hose as shown in the figure.

Fig 1: Identifying Front Timing Belt Cover

G07911933

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)

Fig 2: Locating Blow-By Pipe Clamping Bolt

G07911934

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

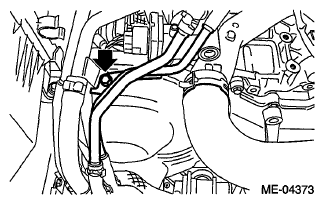

Fig 3: Locating Intake Duct Mounting Bolt

G06649338

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

T1: 3 N.m (0.3 kgf-m, 2.2 ft-lb)

T2: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

Fig 4: Locating Power Steering Pump Mounting Bolts

G06649339

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Refer to "COMPONENT" of "STARTING/CHARGING SYSTEMS" for the tightening torque. Refer to GENERATOR .

Fig 5: Locating Intake Duct Clamping Bolt

G06649153

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Fig 6: Locating Stopper Rod Bolts

G06649320

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

36 N.m (3.7 kgf-m, 26.6 ft-lb)

Fig 7: Identifying Vacuum Hoses

G06649267

Courtesy of SUBARU OF AMERICA, INC.
