Work On The Engine Unit Only

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

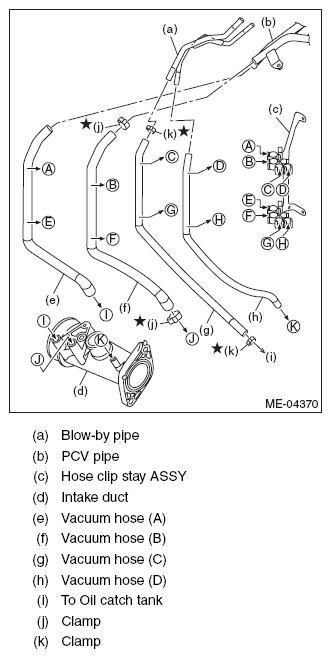

NOTE: Install the vacuum hose as shown in the figure.

Fig 1: Identifying Front Timing Belt Cover

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)

Fig 2: Locating Vacuum Hoses Clamping Bolt

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 3: Locating Timing Belt Cover Bolts

Courtesy of SUBARU OF AMERICA, INC.
