Method Without Angle Gauge

WARNING: This page is about a different variant/trim than selected.

Clean the crankshaft thread using compressed air.
Install the crank pulley.
Apply engine oil to the crank pulley bolt seat and thread.
Tighten the crank pulley bolts.
1. Use the ST to lock the crank pulley, and temporarily tighten the crank pulley bolt.
  ST 499977100 CRANK PULLEY WRENCH

  Tightening torque:

  47 N.m (4.8 kgf-m, 34.7 ft-lb)

  Fig 1: Setting Socket To Crank Pulley Bolt
  Courtesy of SUBARU OF AMERICA, INC.

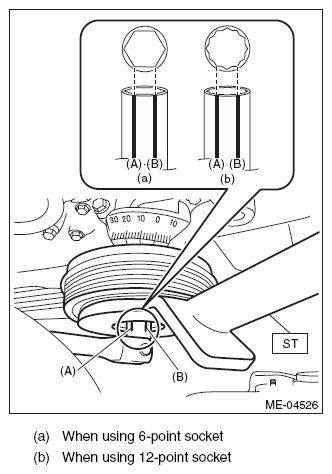

2. Draw reference lines (A) and (B) using a marker to set the socket to the crank pulley bolt as shown in the figure.
  ST 499977100 CRANK PULLEY WRENCH

  NOTE: Set the socket onto the crank pulley bolt so that reference lines (A) and (B) is visible.

  Fig 2: Identifying End Line (C) And Reference Line (B)
  Courtesy of SUBARU OF AMERICA, INC.
3. Draw end line (C) on ST using a marker at the same position as reference line (B) was drawn on the socket in step ( 2).
  ST 499977100 CRANK PULLEY WRENCH

  Fig 3: Identifying Reference Line (A) And End Line (C)
  Courtesy of SUBARU OF AMERICA, INC.
4. Use the ST to lock the crank pulley, and tighten the crank pulley bolt to the angle where reference line (A) and end line (C) are aligned.
  ST 499977100 CRANK PULLEY WRENCH

  NOTE: It should be approx. 60° when reference line (A) and end line (C) are aligned.

  Tightening angle:

  60°±5°

  Fig 4: Locking Crank Pulley Using ST1
  Courtesy of SUBARU OF AMERICA, INC.
5. Install the V-belts. Refer to , INSTALLATION , V-belt.
