Air Cleaner Case: Installation

WARNING: This page is about a different variant/trim than selected.

Install the bolt (A) and nut (B) which secure the air cleaner case (front) to the body.
Tightening torque:

Bolt (A)

6 N.m (0.6 kgf-m, 4.4 ft-lb)

Nut (B)

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 1: Installing Bolt (A) And Nut (B) Which Secure Air Cleaner Case (Front)
Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner element.
Install the air intake case (rear).
NOTE: When installing the air cleaner case (rear), align the protrusion of the air cleaner case (rear) to the hole on the air cleaner case (front) to install.

Fig 2: Installing Air Intake Case (Rear)
Courtesy of SUBARU OF AMERICA, INC.
Install the clip (A) to the air cleaner case (front).
Hold the mass air flow and intake air temperature sensor harness with the clip (B), and connect the connector (C) to the mass air flow and intake air temperature sensor.

Fig 3: Identifying Air Cleaner Case (Front) Clip, Intake Air Temperature Sensor Harness Clip
Courtesy of SUBARU OF AMERICA, INC.
Tighten the clamp which secures the air intake boot.
Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Fig 4: Locating Clamp Which Secures Air Intake Boot
Courtesy of SUBARU OF AMERICA, INC.
Install the suction hose to intake duct and air cleaner case (rear).

Fig 5: Locating Suction Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct. Refer to INSTALLATION .
Connect the ground cable to battery.

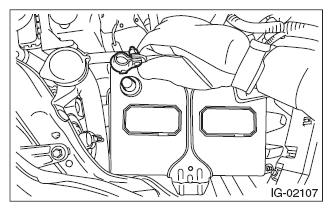

Fig 6: Connecting Battery Ground Cable

Courtesy of SUBARU OF AMERICA, INC.
