Center And Rear Exhaust Pipe, And Muffler

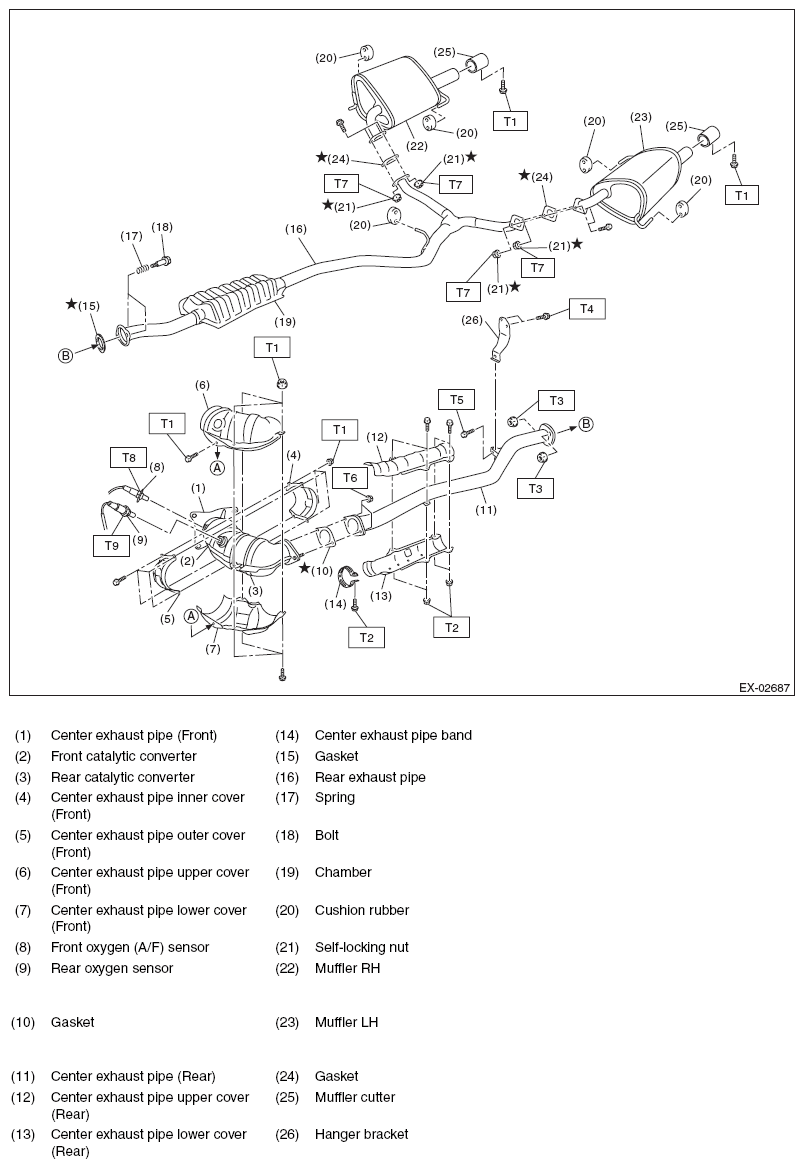

Fig 1: Identifying Center And Rear Exhaust Pipe, And Muffler Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 13 (1.3, 9.6)

T3: 18 (1.8, 13.3)

T4: 23 (2.3, 17.0)

T5: 35 (3.6, 25.8)

T6: 42.5 (4.3, 31.3)

T7: 48 (4.9, 35.4)

T8: Refer to  FRONT OXYGEN (A/F) SENSOR  INSTALLATION, .

T9: Refer to  REAR OXYGEN SENSOR  INSTALLATION .
