Purge Control Solenoid Valve 2

WARNING: This page is about a different variant/trim than selected.

Remove the collector cover.
Disconnect the ground cable from battery.

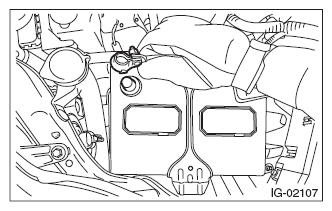

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler. Refer to INTERCOOLER .
Remove the bolt securing the solenoid valve bracket assembly from intake manifold.

Fig 2: Locating Solenoid Valve Bracket Assembly Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts securing the PCV pipe and engine harness from intake manifold.

Fig 3: Locating PCV Pipe Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the nut securing the purge control solenoid valve 2 to the solenoid valve bracket assembly.

Fig 4: Locating Purge Control Solenoid Valve Mounting Nut
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) and vacuum hose (B) from the purge control solenoid valve 2, and remove the purge control solenoid valve 2.

Fig 5: Identifying Purge Control Solenoid Valves (View 1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
