Purge Control Solenoid Valve 2

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

NOTE: Connect the vacuum hose as shown in the figure.

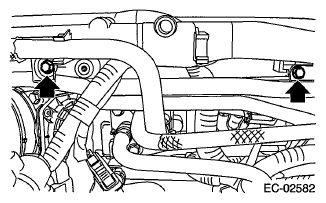

Fig 1: Identifying Purge Control Solenoid Valves Mounting Nut

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 2: Locating Purge Control Solenoid Valves Mounting Nut (View 3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Locating Purge Control Solenoid Valves Mounting Nut (View 4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 4: Locating Purge Control Solenoid Valves Mounting Nut (View 5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
