Section 3 (Aux. Emission Control Devices (H4DOTC)): Canister: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the rear wheel LH.
Lift up the vehicle.
Remove the rear mud guard LH. Refer to MUD GUARD .
Disconnect the quick connectors of the vent tube (A), canister drain tube (B), charge tube (C) and PCV drain tube (D), and remove the tubes from clips (E).
NOTE: Disconnect the quick connector as shown in the figure.

Fig 1: Locating Quick Connectors
Courtesy of SUBARU OF AMERICA, INC.

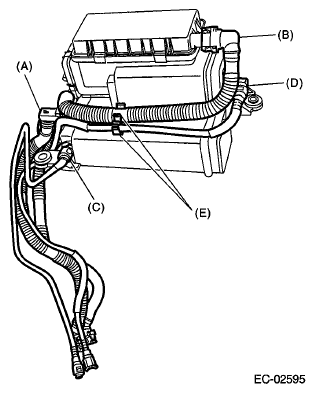

Fig 2: Identifying Vent Tube, Canister Drain Tube, Charge Tube And PCV Drain Tube
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip holding the rear wiring harness.

Fig 3: Locating Rear Wiring Harness Mounting Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the canister from vehicle.

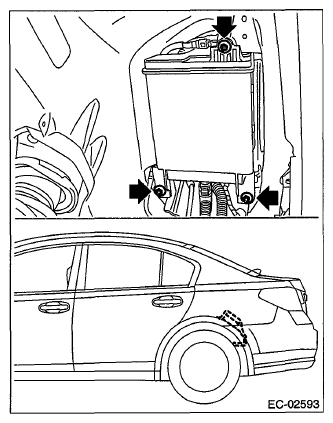

Fig 4: Locating Canister Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from drain valve.

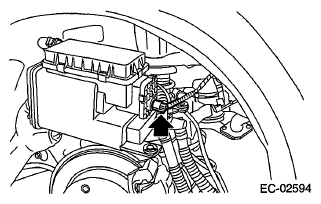

Fig 5: Locating Drain Valve Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the vent tube (A), canister drain tube (B), charge tube (C) and PCV drain tube (D) from canister, and remove the canister drain tube and PCV drain tube (D) from clip (E).
NOTE: Disconnect the quick connector as shown in the figure.

Fig 6: Locating Quick Connectors
Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Vent Tube, Canister Drain Tube, Charge Tube And PCV Drain Tube
Courtesy of SUBARU OF AMERICA, INC.
