Clutch Pipe and Hose: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.
  2. Remove the collector cover. (turbo model)
  3. Remove the air intake boot assembly. (non-turbo model) Refer to AIR INTAKE BOOT .
  4. Remove the intercooler. (turbo model) Refer to INTERCOOLER .
  5. Thoroughly drain the clutch fluid from the reservoir tank.
  6. Disconnect the clutch pipe from the clutch hose and connector. Disconnect the reservoir tank hose from the reservoir tank.
    CAUTION: Be careful not to spill the clutch fluid. Clutch fluid spilled on the vehicle body will harm the paint surface; wash it off with water and wipe clean quickly if spilled.

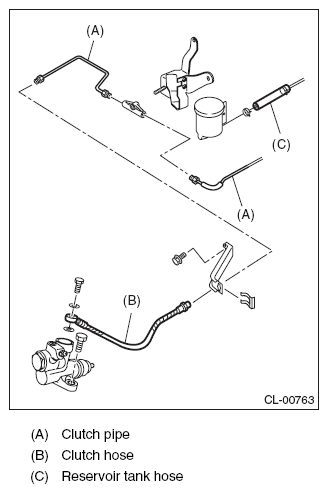

    Fig 1: Identifying Clutch Pipe, Hose And Reservoir Tank Hose
    G07913878Courtesy of SUBARU OF AMERICA, INC.
  7. Pull out the clamp, then remove the clutch hose from the clutch bracket.
    Fig 2: Identifying Clamp, Clutch Hose And Clutch Bracket
    G07913879Courtesy of SUBARU OF AMERICA, INC.
  8. Disconnect the clutch hose from operating cylinder.
  9. Remove the clutch bracket.
  10. Remove the instrument panel lower cover. Refer to INSTRUMENT PANEL LOWER COVER .
  11. Remove the pedal assembly. Refer to REMOVAL , Clutch Pedal.
  12. Remove the clutch pipe from the reservoir tank hose, mass damper, clutch damper, master cylinder and clutch pipe grommet.
Fig 3: Identifying Clutch Pipe And Reservoir Tank Hose
G07913880Courtesy of SUBARU OF AMERICA, INC.
