Back-Up Light Switch & Neutral Position Switch

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.
Remove the collector cover. (turbo model)
Remove the air intake boot assembly. (non-turbo model) Refer to AIR INTAKE BOOT .
Remove the intercooler. (turbo model) Refer to INTERCOOLER .
Disconnect the connector back-up light switch & neutral position switch.
- Non-turbo model

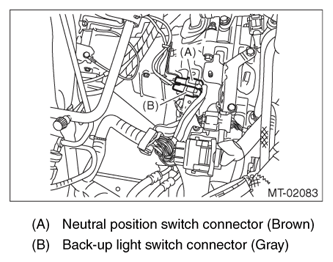

  Fig 1: Identifying Back-Up Light Switch Neutral Position Switch Connectors (Non-Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Turbo model

  Fig 2: Identifying Back-Up Light Switch Neutral Position Switch Connectors (Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the back-up light switch & neutral position switch with the harness.

Fig 3: Identifying Back-Up Light Switch And Neutral Position Switch
Courtesy of SUBARU OF AMERICA, INC.
