Reverse Idler Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from the vehicle. Refer to Manual Transmission Assembly  .
  2. Remove the back-up light switch neutral position switch. Refer to Switches and Harness  .
  3. Remove the transfer case together with the extension case assembly. Refer to Transfer Case and Extension Case Assembly  .
  4. Remove the transmission case. Refer to Transmission Case  .
  5. Remove the drive pinion shaft assembly. Refer to Drive Pinion Shaft Assembly  .
  6. Remove the main shaft assembly for single-range. Refer to Main Shaft Assembly for Single-Range  .
  7. Remove the front differential assembly. Refer to Front Differential Assembly  .
  8. Remove the shifter forks and rods. Refer to Shifter Fork and Rod  .
  9. Remove the snap ring and bolt. Remove the reverse idler gear bushing and drive out the spring pin by tapping it.
    NOTE: When driving out the spring pin, rotate the reverse idler gear shaft to prevent it from contacting the case and remove the spring pin into the case inside.

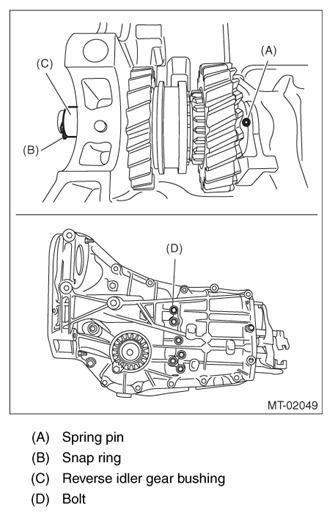

    Fig 1: Removing Spring Pin Into Case Inside
    G07915248Courtesy of SUBARU OF AMERICA, INC.
  10. Pull out the reverse idler gear shaft toward the rear side and remove all parts.
    NOTE: When pulling out the reverse idler gear shaft, remove the reverse idler gear assembly as a unit while supporting it from the bottom by hand to prevent the parts to scatter in the transmission case.
    Fig 2: Removing Reverse Idler Gear Assembly
    G07915249Courtesy of SUBARU OF AMERICA, INC.
