Reverse Idler Gear: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the snap ring from the reverse idler gear assembly.

Fig 1: Removing Snap Ring From Reverse Idler Gear Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the friction plate, reverse idler sub gear and reverse idler spring.

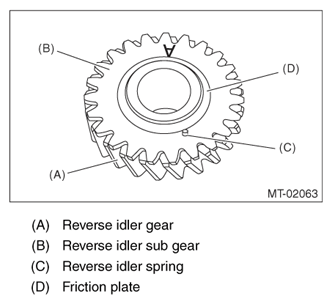

Fig 2: Removing Friction Plate, Reverse Idler Sub Gear And Reverse Idler Spring
Courtesy of SUBARU OF AMERICA, INC.
