Reverse Idler Gear: Assembly

WARNING: This page is about a different variant/trim than selected.

Insert the reverse idler spring into the holes on reverse idler gear and reverse idler sub gear to install.
NOTE: Install the reverse idler sub gear with the side with the mark on it facing outside.

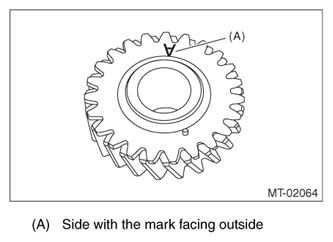

Fig 1: Identifying Mark Facing Outside
Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying Reverse Idler Sub Gear, Reverse Idler Gear And Reverse Idler Spring
Courtesy of SUBARU OF AMERICA, INC.
Install the friction plate, and then secure with the snap ring.

Fig 3: Identifying Mark Facing Outside
Courtesy of SUBARU OF AMERICA, INC.
