Camshaft position sensor RH

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G07910744Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from the camshaft position sensor RH, and remove the camshaft position sensor RH.

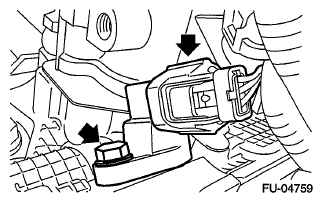

    Fig 2: Locating Camshaft Position Sensor RH Connector
    G06648838Courtesy of SUBARU OF AMERICA, INC.
