Oil Pump: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
    NOTE: Follow the steps below when removing the collector cover.
    1. Lift up (A) in two positions at the rear.
    2. Moving (B) in two positions at the front toward the vehicle, lift them up.
      Fig 1: Removing Collector Cover
      G06651504Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery.
  3. Lift up the vehicle.
  4. Remove the under cover. Refer to FRONT UNDER COVER .
  5. Drain the engine oil. Refer to , REPLACEMENT , Engine Oil.
  6. Drain engine coolant. Refer to ENGINE COOLANT .
  7. Lower the vehicle.
  8. Remove the radiator. Refer to RADIATOR .
  9. Remove the V-belts. Refer to V-BELT .
  10. Remove the crank pulley. Refer to CRANK PULLEY .
  11. Remove the chain cover. Refer to CHAIN COVER .
  12. Remove the timing chain. Refer to TIMING CHAIN ASSEMBLY .
  13. Remove the oil pan lower. Refer to , REMOVAL , Oil Pan.
  14. Remove the stiffener and the oil pump.

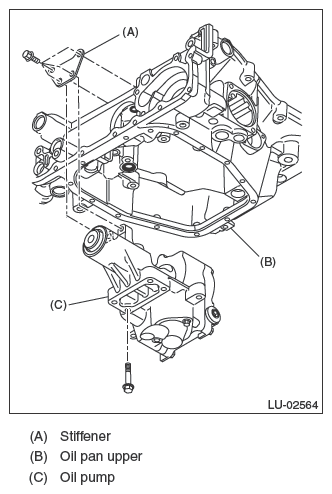

    Fig 2: Identifying Stiffener, Upper Oil Pan And Oil Pump
    G07912929Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the strainer from the oil pump.
  16. Remove the O-ring from oil pan upper.
    Fig 3: Locating Upper Oil Pan O-Ring
    G05668068Courtesy of SUBARU OF AMERICA, INC.
