Engine Lubrication System Trouble in General: Inspection

WARNING: This page is about a different variant/trim than selected.

Before performing diagnostics, make sure that the engine oil level is correct and no oil leakage exists.

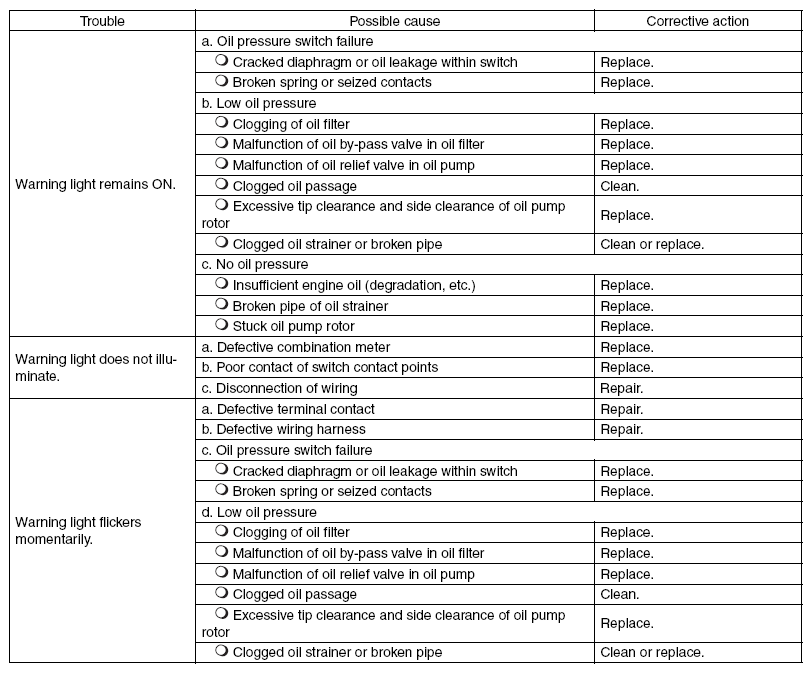

Fig 1: Engine Lubrication System Inspection Sheet
G07912954Courtesy of SUBARU OF AMERICA, INC.
