Diagnostic procedure

WARNING: This page is about a different variant/trim than selected.

Drive according to the drive pattern described below.

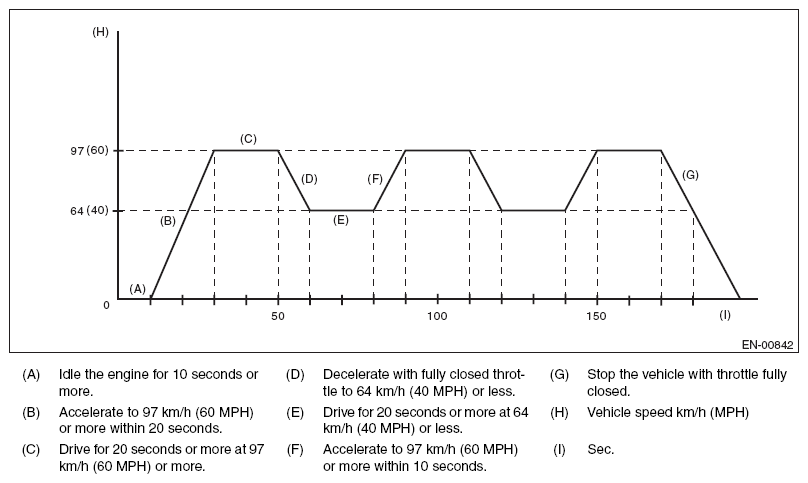

Fig 1: Vehicle Speed Drive Pattern
G07910507Courtesy of SUBARU OF AMERICA, INC.
