Section 15 (Engine Mechanical (H6DO)): V-belt: Inspection

WARNING: This page is about a different variant/trim than selected.

Replace the V-belt, if cracks, fraying or wear is found.
Make sure that the V-belt automatic belt tension indicator (A) is within the range (D).

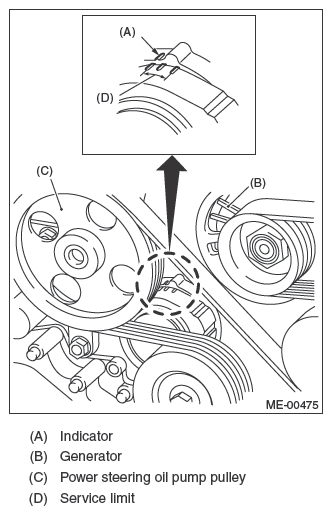

Fig 1: Identifying Indicator, Generator, Power Steering Oil Pump Pulley And Service Limit
Courtesy of SUBARU OF AMERICA, INC.
