Section 12 (Aux. Emission Control Devices (H6DO)): Canister: Removal

1. Remove the rear wheel LH.
2. Lift up the vehicle.
3. Remove the rear mud guard LH. Refer to MUD GUARD .
4. Disconnect the quick connectors of the vent tube (A), canister drain tube (B) and charge tube (C), and remove the tubes from clips (D).
   NOTE: Disconnect the quick connector as shown in the figure.
   Fig 1: Disconnecting Quick Connectors

   Courtesy of SUBARU OF AMERICA, INC.
   Fig 2: Identifying Vent Tube, Canister Drain Tube, Charge Tube And Clips

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the clip holding the rear wiring harness.
   Fig 3: Locating Rear Wiring Harness Clip

   Courtesy of SUBARU OF AMERICA, INC.
6. Remove the canister from vehicle.

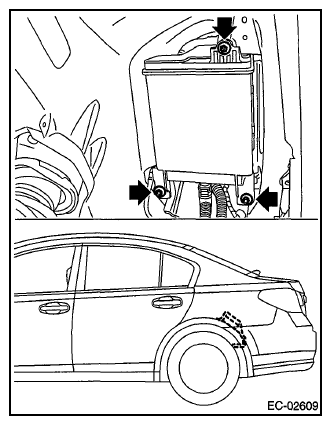

   Fig 4: Locating Canister Bolts

   Courtesy of SUBARU OF AMERICA, INC.
7. Disconnect the connector from drain valve.
   Fig 5: Locating Drain Valve Connector

   Courtesy of SUBARU OF AMERICA, INC.
8. Disconnect the vent tube (A), canister drain tube (B) and charge tube (C), and remove the canister drain tube (B) from clip (D).

NOTE: Disconnect the quick connector as shown in the figure.

Fig 6: Disconnecting Quick Connectors

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Vent Tube, Canister Drain Tube, Charge Tube And Clips

Courtesy of SUBARU OF AMERICA, INC.
