Connecting The Fuel Line Quick Connector

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Make sure there are no damage or dust on connections. If necessary, clean seal surface of pipe.

Fig 1: Identifying Pipe And Seal Surface Of Pipe
Courtesy of SUBARU OF AMERICA, INC.
When reusing the retainer, make sure that neither scratches nor deformation exist on the retainer. If it is faulty, use a new part.

CAUTION:

Make sure that the quick connector is securely connected.

Fig 2: Connecting Quick Connector To Pipe
Courtesy of SUBARU OF AMERICA, INC.
Make sure the two retainer pawls are engaged in their mating positions in the quick connector.
Be sure to inspect tubes and their connections for any leakage of fuel.
To connect the connector, hold (d) shown in the figure and push in axial direction.
When connecting the connector, do not bend or twist the tube forcibly. If the tube is bent, replace with a new part.

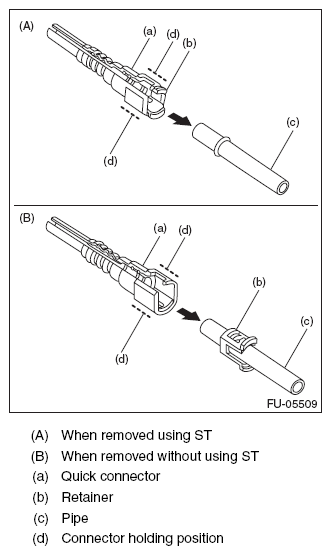

Fig 3: Connecting Quick Connector To Pipe (With And Without Special Tools)

Courtesy of SUBARU OF AMERICA, INC.
