Ambient Sensor (Auto A/C Model): Removal

  1. Disconnect the ground cable from battery.
  2. Remove the ambient sensor.
    1. Disconnect the connector.
    2. Remove the ambient sensor from the radiator lower panel.

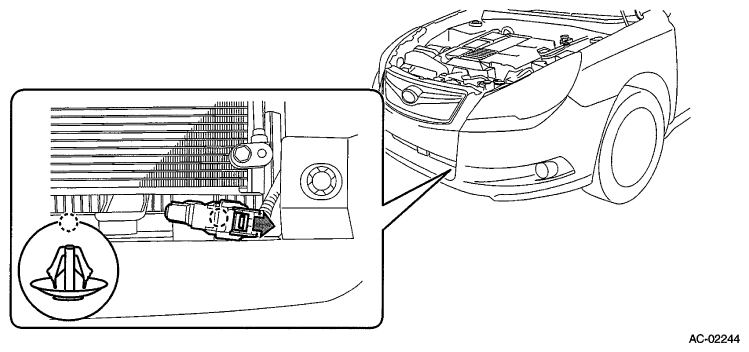

      Fig 1: Removing Ambient Sensor From Radiator Lower Panel
      G06652993Courtesy of SUBARU OF AMERICA, INC.
