Home >> Subaru >> 2010 >> Outback Limited >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Exterior Trim / Interior Trim >> Mud Guard >> Removal

Mud Guard: Removal

  1. Lift up the vehicle.
  2. Remove the wheels.
  3. Remove the clips, and remove the mud guard.

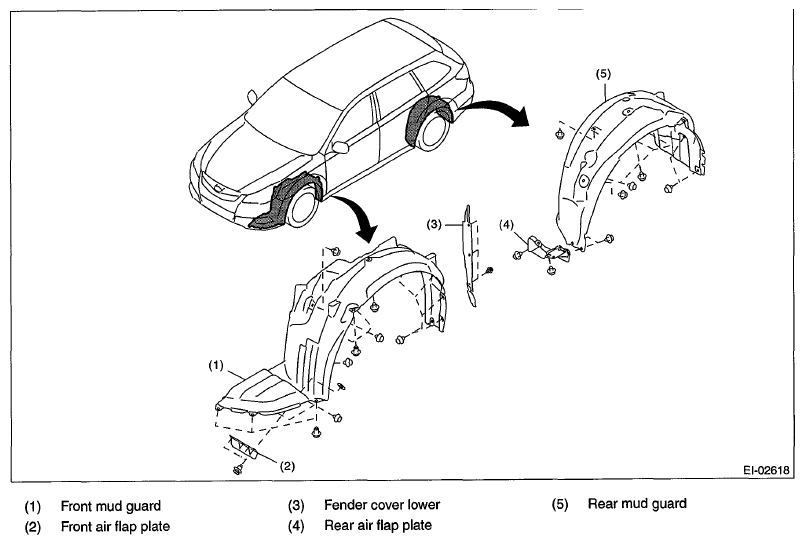

    Fig 1: Identifying Mud Guard Components
    G06653999Courtesy of SUBARU OF AMERICA, INC.
