Body Integrated Unit: Removal

NOTE:
  1. When replacing the body integrated unit
    • Prepare the security ID plate.
    • For models with immobilizers, prepare the required number of new immobilizer keys (unregistered), (except for model with keyless access)
    • When replacing the body integrated unit, check the current settings and record it. Ref. to LIST , Read Current Data.
  2. After replacing the body integrated unit with immobilizer
    • Register the immobilizer. For detailed operation procedures, refer to PC application help for Subaru Select Monitor.
    • Set the current settings as recorded.
  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. Ref. to REMOVAL , Instrument Panel Lower Cover.
  3. Remove the body integrated unit.
    CAUTION: Be careful to keep water and other foreign materials away from body integrated unit.
    1. Disconnect the harness clip and connector.
    2. Remove the bolts, and remove the body integrated unit.

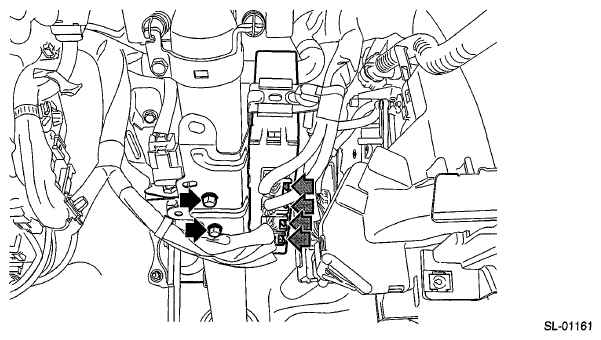

      Fig 1: Locating Body Integrated Unit And Bolt
      G06653942Courtesy of SUBARU OF AMERICA, INC.
