Clutch Disc and Cover: Removal

  1. Remove the transmission assembly from vehicle body. Ref. to REMOVAL , Manual Transmission Assembly.
  2. Attach the ST to the flywheel.

    ST 499747100 CLUTCH DISC GUIDE

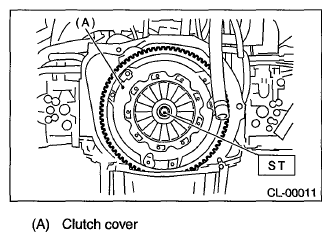

    Fig 1: Identifying Clutch Cover
    G06652507Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the clutch cover and clutch disc.
    NOTE:
    • Take care not to allow oil to touch the clutch disc face.
    • Do not disassemble the clutch cover or clutch disc.
