Front Sub Sensor: Installation

CAUTION:

If the airbag has been activated, replace the front sub sensor assembly with a new part.
Do not reuse the bolt and nut. Always use new bolts and nuts for them.
When installing the sensor, securely insert the arrest pin on the back side of sensor into the mounting hole on the body.
After installing the headlight assembly, be sure to perform headlight beam adjustment.

Before installation, inspect the following items and replace any faulty part with a new one.
- Front sub sensor damage
- Connector damage
- Sensor cover plate deformation or damage
Install each part in the reverse order of removal.
CAUTION: Install the bumper face so that the under cover front end (b) comes inside the front bumper face (a).

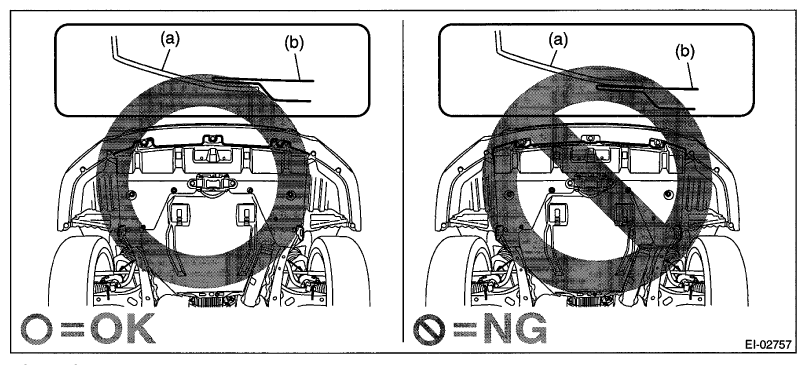

Fig 1: Caution For Sensor Cover Plate Installation Position
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Front sub sensor: 13 N.m (1.33 kgf-m, 9.6 ft-lb)

Headlight assembly: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
