Hose and Pipe: Removal

CAUTION:
  • When disconnecting hoses, do not apply an excessive force to them. After installing, check that no torsion or excessive tension applied to the hoses.
  • Seal the disconnected hose with a plug or vinyl tape to prevent foreign matter from entering.
  1. Disconnect the ground cable from battery.
  2. Using the refrigerant recovery system, drain the refrigerant. Ref. to PROCEDURE , Refrigerant Recovery Procedure.
  3. Remove the bolts and screws and detach the hoses and pipes.

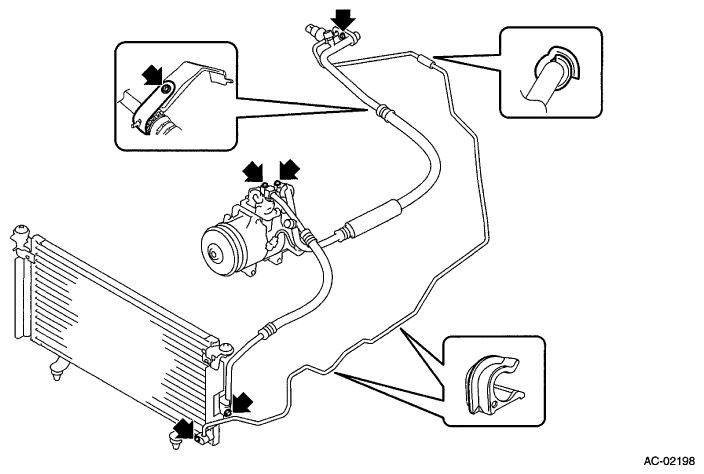

    Fig 1: Locating Hoses And Pipes With Screws
    G06652992Courtesy of SUBARU OF AMERICA, INC.
