Air Conditioning Unit

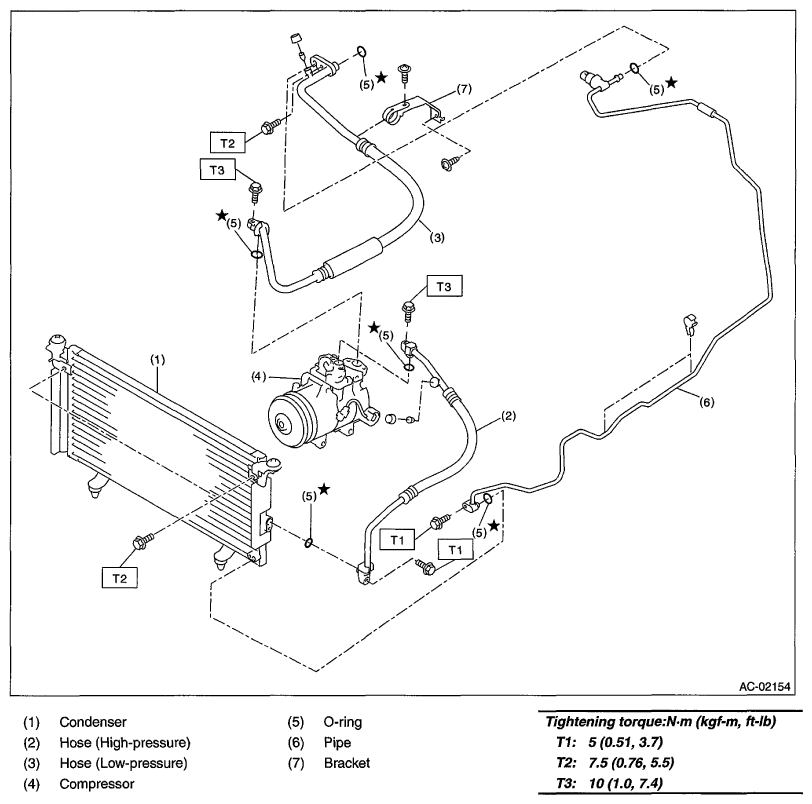

Fig 1: Air Conditioning Unit Replacement Components With Torque Specifications
G06652898Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.51,3.7)

T2: 7.5 (0.76,5.5)

T3: 10 (1.0, 7.4)
