Components With Torque Specifications: Turbocharger

WARNING: This page is about a different variant/trim than selected.

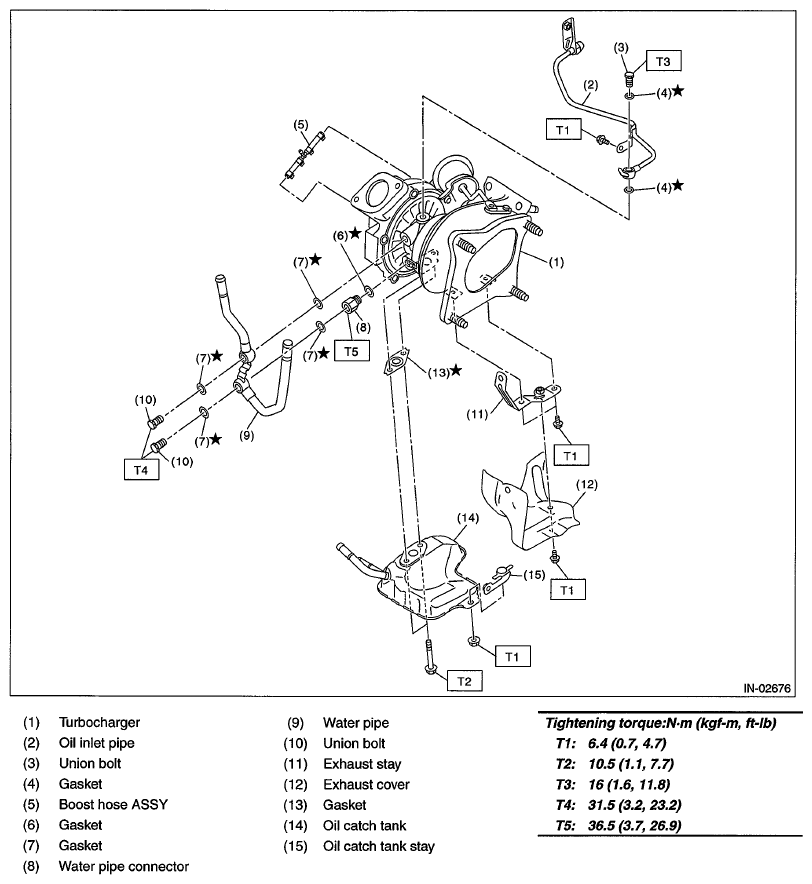

Fig 1: Turbocharger Components With Torque Specifications
G06649105Courtesy of SUBARU OF AMERICA, INC.
