Air Cleaner Element: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the suction hose from intake duct and air cleaner case (rear).

Fig 1: Locating Intake Duct And Air Cleaner Case (Rear)
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip (A) from the air cleaner case (front).

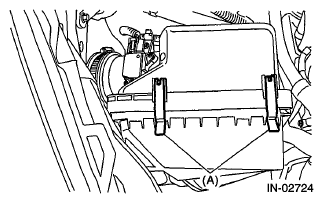

Fig 2: Identifying Clip And Air Cleaner Case (Front)
Courtesy of SUBARU OF AMERICA, INC.
Open the air cleaner case to remove the air cleaner element.

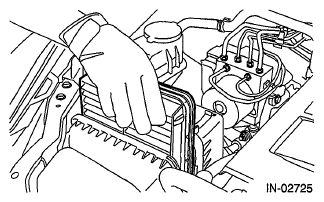

Fig 3: Identifying Air Cleaner Element
Courtesy of SUBARU OF AMERICA, INC.
