Intake Manifold: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the collector cover.
NOTE: Follow these procedures for removal of the collector cover.
1. Lift up the rear side holding two positions (A).
2. Lift up the front side holding two positions (B) while moving it in the forward direction of the vehicle.

  Fig 1: Locating Front And Rear Side Holding Position
  Courtesy of SUBARU OF AMERICA, INC.
Release the fuel pressure. Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel.
Disconnect the ground cable from battery.
Open the fuel filler lid and remove the fuel filler cap.
Remove the air cleaner case and air intake boot assembly. Ref. to REMOVAL , Air Cleaner Case. Ref. to REMOVAL , Air Intake Boot.
Disconnect the following connector.
1. Remove the securing clips from the two locations on the fuel pipe protector LH.

  Fig 2: Locating Fuel Pipe Protector LH Clips
  Courtesy of SUBARU OF AMERICA, INC.
2. Generator connector
3. Generator terminal B
4. Remove the harness cover from collector cover bracket.
5. A/C compressor solenoid connector
6. Flow sensor connector

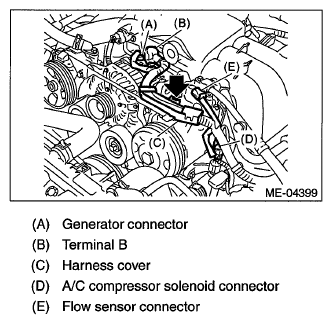

  Fig 3: Identifying Generator Connector, Terminal B, Harness Cover And Flow Sensor Connector
  Courtesy of SUBARU OF AMERICA, INC.
Disconnect the PCV hose and blow-by hose.

Fig 4: Locating PCV Hose And Blow-By Hose
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) from throttle body.
Disconnect the engine harness connector (B).

Fig 5: Identifying Engine Harness Connector And Throttle Body Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the brake booster vacuum hose.

Fig 6: Identifying Brake Booster Vacuum Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the throttle body from the intake manifold.
NOTE: Do not disconnect the inlet and outlet hoses of engine coolant.

Fig 7: Locating Inlet And Outlet Hoses Of Engine Coolant
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the fuel delivery hose and evaporation hose.
CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from hoses using a container or cloth.
1. Attach ST to the fuel delivery pipe and push ST in the direction of arrow mark to disconnect the quick connector of the fuel delivery hose.
  ST 42099AE000 QUICK CONNECTOR RELEASE

  Fig 8: Attaching ST To Fuel Delivery Pipe
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the clip and disconnect the evaporation hose.
Remove the fuel pipe protector LH.

Fig 9: Locating Fuel Pipe Protector LH Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine harness from the fuel injector pipe LH.
Disconnect the connectors of the oil temperature sensor, engine coolant temperature sensor and intake oil flow control solenoid valve LH.

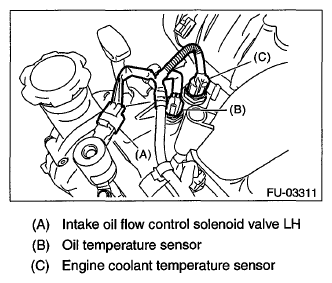

Fig 10: Identifying Intake Oil Flow Control Solenoid Valve LH And Oil Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold fuel injector pipe LH to cylinder head.

Fig 11: Locating Fuel Injector Pipe LH Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors of the intake oil flow control solenoid valve RH.

Fig 12: Identifying Intake Oil Flow Control Solenoid Valve RH Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pipe protector RH.

Fig 13: Locating Fuel Pipe Protector RH Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine harness from the fuel injector pipe RH.
Remove the bolts which hold the fuel injector pipe RH to the cylinder head.

Fig 14: Locating Fuel Injector Pipe RH Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold the intake manifold to the cylinder head.
- LH side

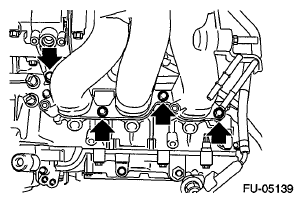

  Fig 15: Locating Intake Manifold Bolts (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- RH side

  Fig 16: Locating Intake Manifold Bolts (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
Remove the EGR pipe securing bolt.

Fig 17: Identifying EGR Pipe Securing Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold.
