Fuel Tank

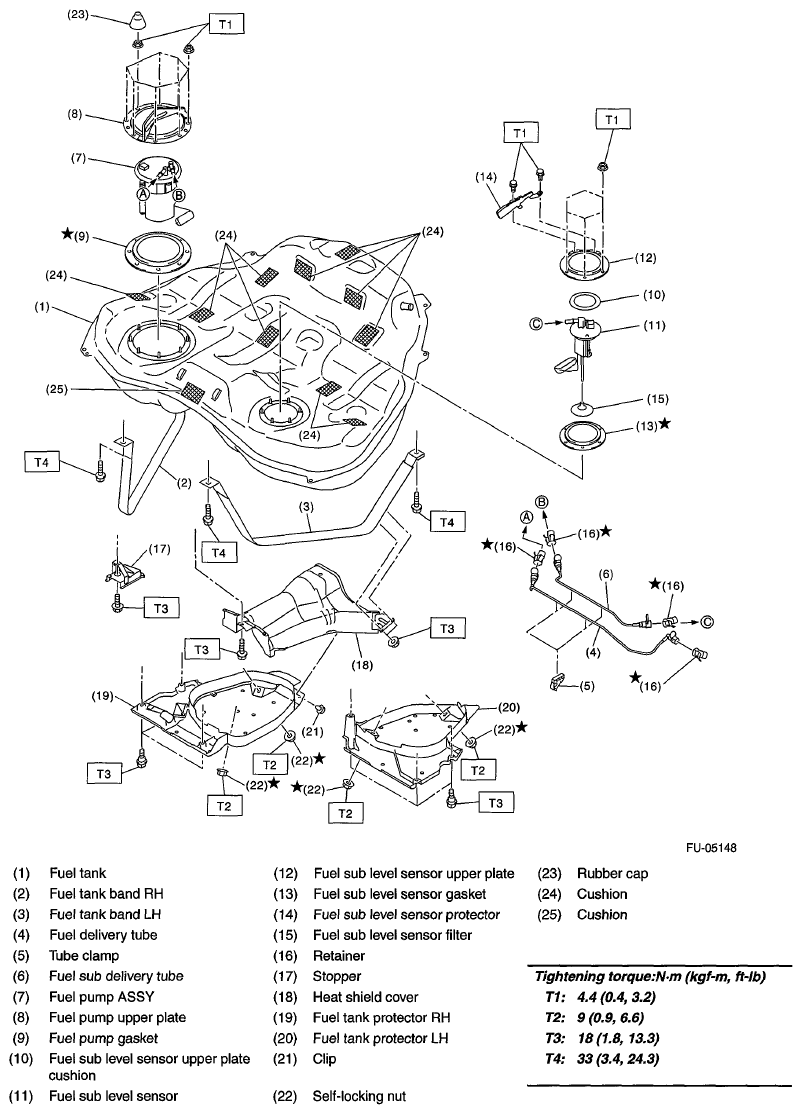

Fig 1: Exploded View Of Fuel Tank With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4.4 (0.4,3.2)

T2: 9 (0.9,6.6)

T3: 18 (1.8,13.3)

T4: 33 (3.4,24.3)
