Fuel Line

WARNING: This page is about a different variant/trim than selected.

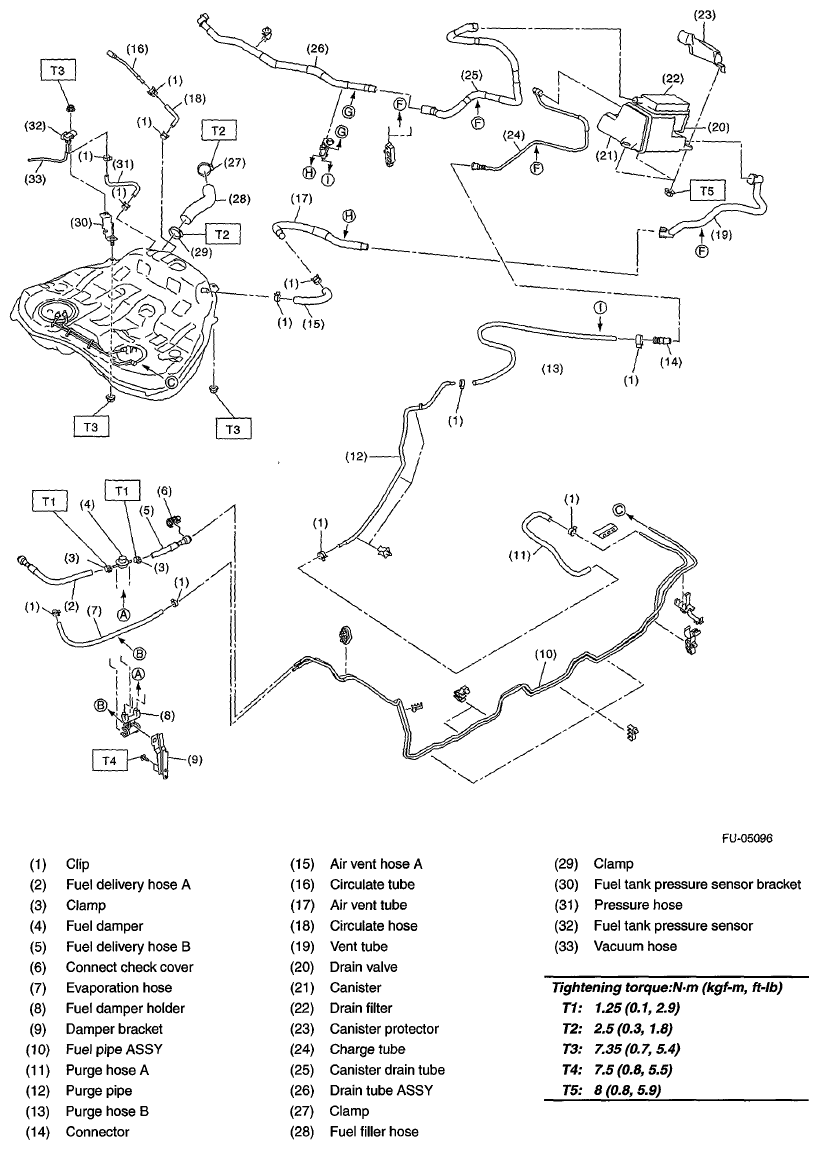

Fig 1: Exploded View Of Fuel Line With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.25 (0.1,2.9)

T2: 2.5 (0.3, 1.8)

T3: 7.35 (0.7,5.4)

T4: 7.5 (0.8,5.5)

T5: 8 (0.8,5.9)
