Fuel Injector

WARNING: This page is about a different variant/trim than selected.

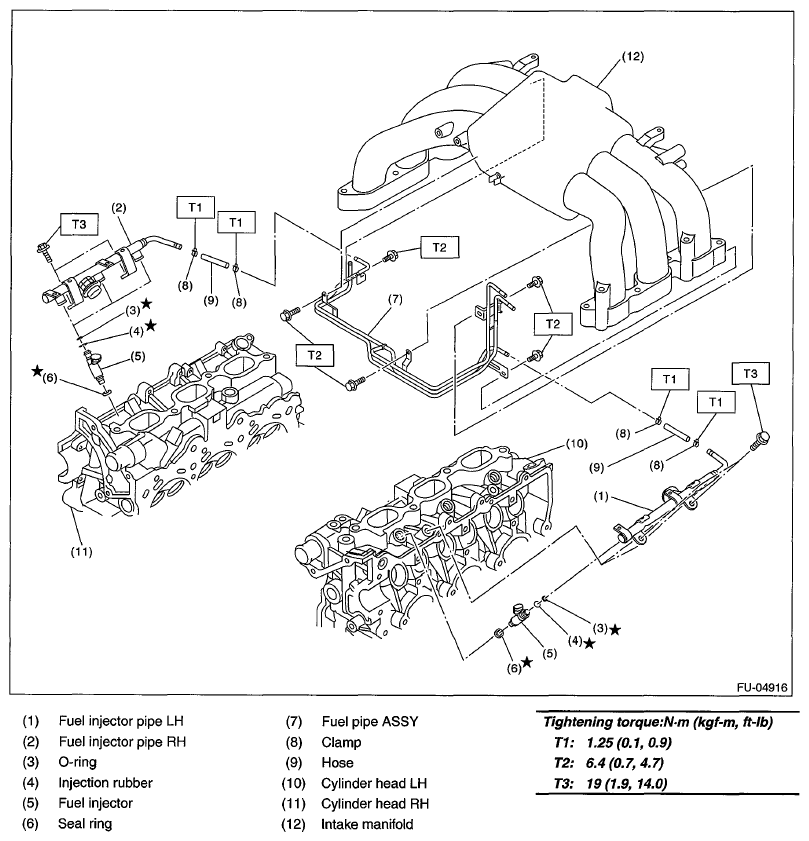

Fig 1: Exploded View Of Fuel Injector With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.25 (0.1,0.9)

T2: 6.4 (0.7,4.7)

T3: 19 (1.9, 14.0)
